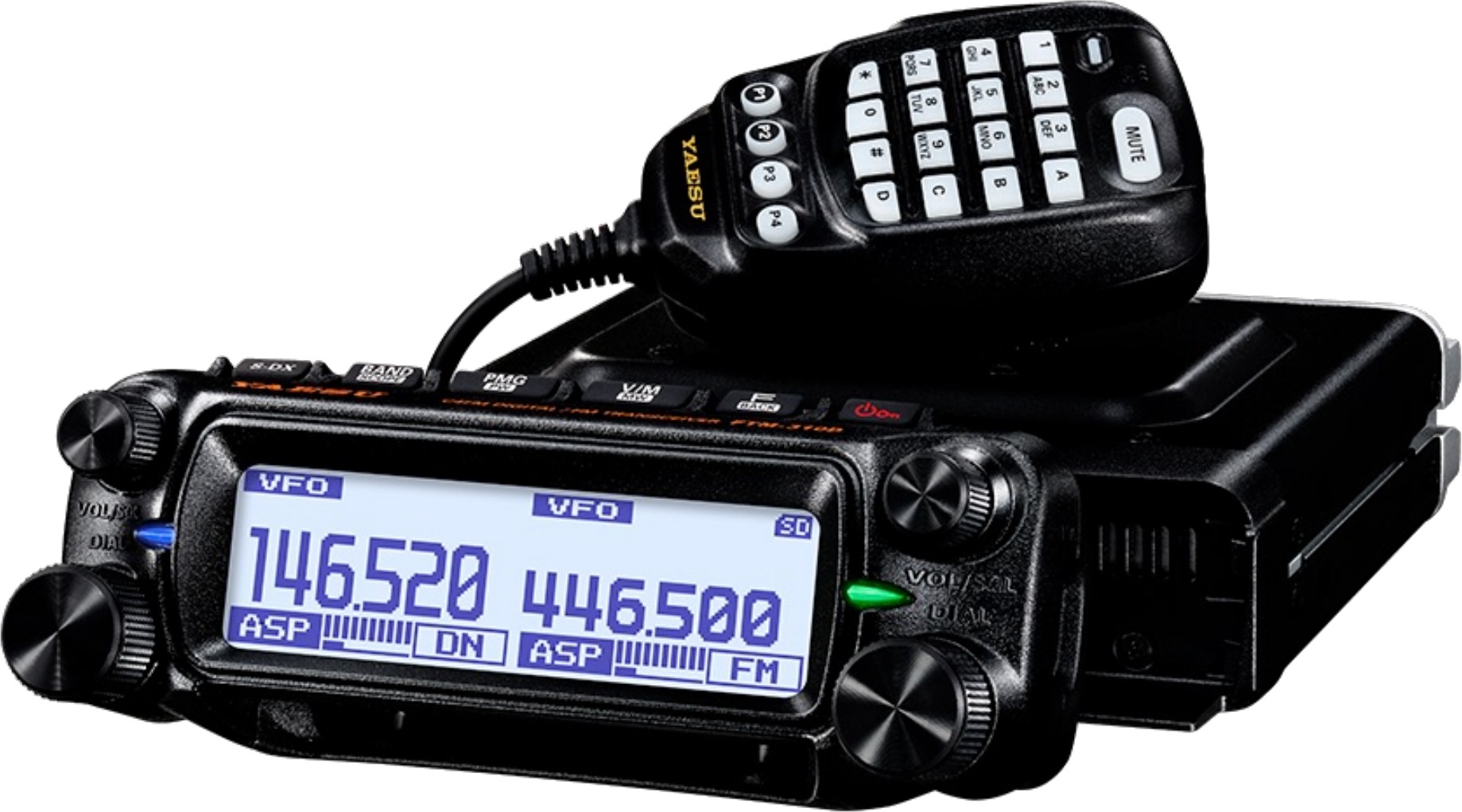

YAESU FTM-310DE Dual Band Transceiver (Plus £85 Cashback From Yaesu UK)

After your purchase, claim your cashback here – Yaesu Cashback

The FTM-310DE series provides true dual band operation with two different receivers on different bands or within the same band including C4FM/C4FM simultaneous receive (V/U, V/V, U/V, U/U). The power output is 55W on VHF and 50W on UHF (55W/50W, 25W,5W are selectable). Heavy Duty Heat Sink with FACC (Funnel Air Convection Conductor) ensures stable and reliable transmit power.

Features:

1. C4FM Digital Mode: C4FM Digital is the standard mode for professional communication devices and has excellent audio quality (BER: Bit Error Rate Characteristics) compared with GMSK digital. By adding YAESU’s original error correction technology, the FTM- 310DE series has achieved comprehensive high-grade communications.
2. Super-DX + ASP (Audio Digital Signal Processor): In both C4FM digital and FM analog modes, the sensitivity of the RF amplifier can be increased by activating the Super-DX function. When operating in FM analog mode, the ASP can be activated in addition to the Super-DX. ASP AUTO/ MANUAL modes are selectable. In ASP AUTO mode, Super-DX is always turned on and ASP automatically activates when the transceiver detects weak signals in FM analog mode. In ASP MANUAL mode, Super-DX and ASP can be manually switched on and off each time [S-DX] key is briefly pressed.
3. PMG (Primary Memory Group): Up to 5 VFO or Memory Channel frequencies can be assigned to the PMG and monitored using two different receivers. The reception status of the PMG channels is displayed in real time with a bar graph on the PMG screen. AUTO or MANUAL mode is selectable. AUTO mode monitors all PMG channels and up to two channels can be simultaneously heard. Transmit is automatically moved to the received channel. MANUAL mode always monitors the manually selected channel and transmit also stays on that channel. The signal received on the other channel is also shown on the screen and the audio can be heard.
4. MAG (Memory Auto Grouping): Memory channels can be automatically grouped and recalled for each band. In “My Group(M-GRP)”, any memory channels can be registered according to the user’s preference regardless of band.
5. CFL (Customized Function List): Up to 9 frequently used functions from the 127 Menus can be registered and then easily selected.
6. High-resolution Band Scope: Dual receive and Scope operation display is switchable each time the [BAND](SCOPE) key is pressed and held. Up to 47 channels can be displayed with the Scope operation. By rotating the left DIAL knob, the frequency range can be centered and the signal at the center marker is received. By rotating the right DIAL knob, the marker can be moved across the display and the signal at the market is received. Transmission can be performed at the frequency of the marker position at any time.
7. FM Friendly Digital using AMS(Automatic Mode Select): AMS (Automatic Mode Select) automatically determines whether the receiving signal is C4FM Digital or FM analog and sets the receiver to the appropriate mode.
8. DG-ID (Digital Group ID) and GM (Group Monitor): DG-ID function allows using two-digit ID numbers (00 - 99) to communicate only with specific group members who set the same frequency and DG-ID number in advance. GM (Group Monitor) function can be utilized to automatically monitor when group member stations with the same DG-ID number are operating within communication range.

Technical Features:

1. High-Sensitivity 66 channel GPS Receiver
2. 1200/ 9600bps APRS® Data Communication
3. Fully Supports the WiRES-X operation
4. Wide-range receiver coverage from 108MHz to 550MHz both on MAIN/SUB bands
5. Bluetooth® hands-free operation is available by installing the optional BU-5 board
6. Flexible angle adjustment of the control-head by attaching the optional swing-head kit SJMK-500
7. Control-Head with Microphone jack in addition to the microphone connections on the front of the main unit
