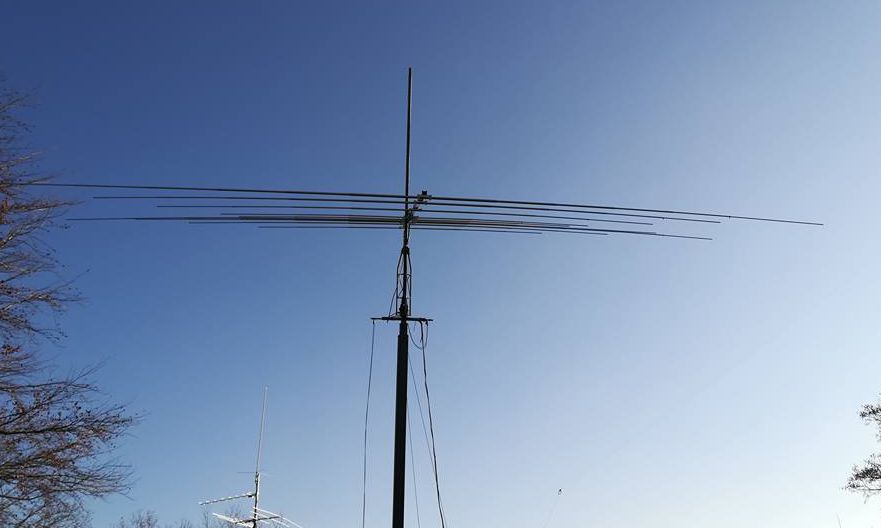

INNOV XR5 - 9 Element 20m -10m Yagi

>The XR5 MkII - A 9 element multi-Band HF 5 Band Super-compact Yagi covering 20m/17m/15m/12m/10m bands with a single feed point

The XR5 has no matching devices, no traps, no coils, no hairpins so nothing to lose valueable power and thus, nothing to over-heat through these inefficient devices.

The XR5 is an ideal partner for today's top SDR radios. There is no limitation in how many bands you can monitor or use at once. This means with products such as the Flex 6700, all 5 bands can be monitored at the same time.

The XR5 MKII has been in development for the last 12 months improving bandwidth and gain to ensure more of each band than ever before can be used without the requirement of an ATU.

The more bands there are added to a multi-band Yagi, the more interlaced elements there are and in turn, performance per band drops with each no band added. The Unique design of the XR5 MkII means no more than 3 band are interlaced on any part of the boom.

We have modified the construction of the XR5 to provide a more rigid look with faster taper to ensure fatigue due to vortex shedding (constant wind flow causing vibration) are not an issue. 20m element start at 35mm diameter and boom is 50mm diameter.

With no moving parts and being modelled for wide bandwidth per band, the XR5 MkII is very forgiving in all weathers allowing you to enjoy your hobby whatever the location or time of year.

Specifications

• Power Rating: 10kw
• Boom Length: 3.3 Metres
• Weight: 33Kg
• Turning Radius: 5.83 Metres
• Wind Loading: 1.156 Square Metres
• Wind Survival: 185KPH / 115MPH
• Stacking Distance: 7 - 12m ( 11m recommended)
• Average Gain per band @ 20m above average ground: 11.24dBi
