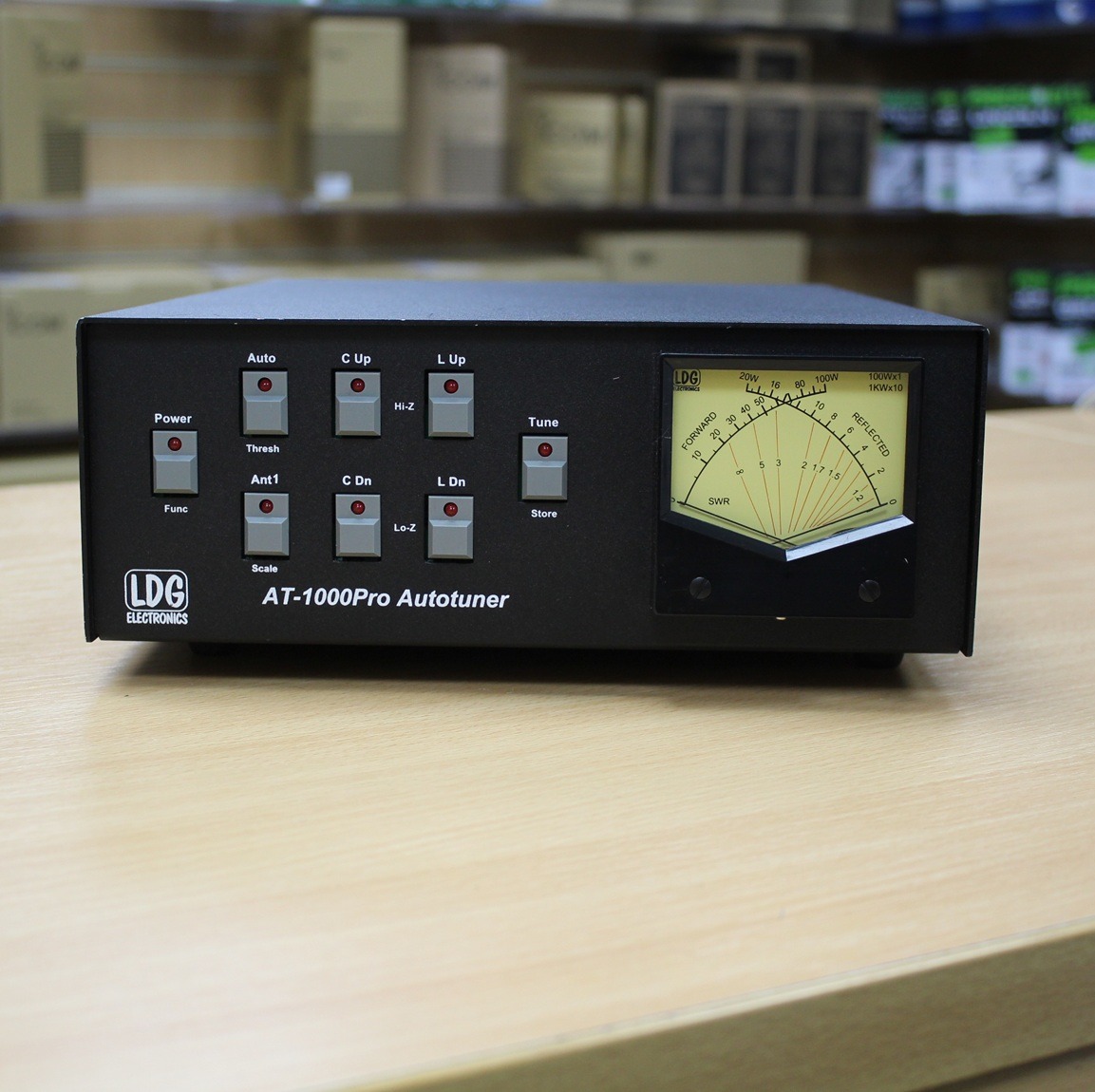

SOLD! USED LDG AT-1000 pro Antenna tuner

Condition:

A nice clean example of a great tuner

A couple of tiny age related marks see pictures

Whats included:

Description:

Building on the success of the AT-1000, LDG Electronics has refined and expanded its flagship 1KW tuner. First and foremost, the AT-1000pro has an Auto mode that automatically starts a tuning cycle any time the SWR exceeds a limit you set. Also, there are provisions for two antennas; you can switch between them any time you need. For each antenna, there are 2,000 memories that store tuning parameters for almost instantaneous tuner setting whenever you transmit on or near a frequency you’ve used before. Just key and it tunes! The AT-1000pro will operate at any power level between 5 and 1,000 watts peak RF input.

The AT-1000pro has a much larger, easier to read cross-needle meter with two selectable scale ranges (100 and 1,000 watts). Each control button has a built-in LED indicator so you can see the tuner’s status at a glance. The AT-1000pro will interface with many popular transceivers, enabling their TUNE button to control the AT-1000pro operation. Dedicated control buttons allow you to fine-tune capacitance and inductance on those rare occasions when the AT-1000 can’t find a perfect match by itself.

The AT-1000 will tune from 1.8 to 54.0 MHz continuously, and will match an amazing range of antennas, from Yagis and dipoles to inverted-Vs and slopers; virtually any coax-fed antenna from 6 to 1000 ohms impedance (16 – 150 ohms on 6 meters). Tuning time is usually under 6 seconds. If you’re transmitting near a frequency with stored tuning parameters, it will set those parameters in under 0.2 seconds. Long wires or antennas fed with ladder line require an external balun.
