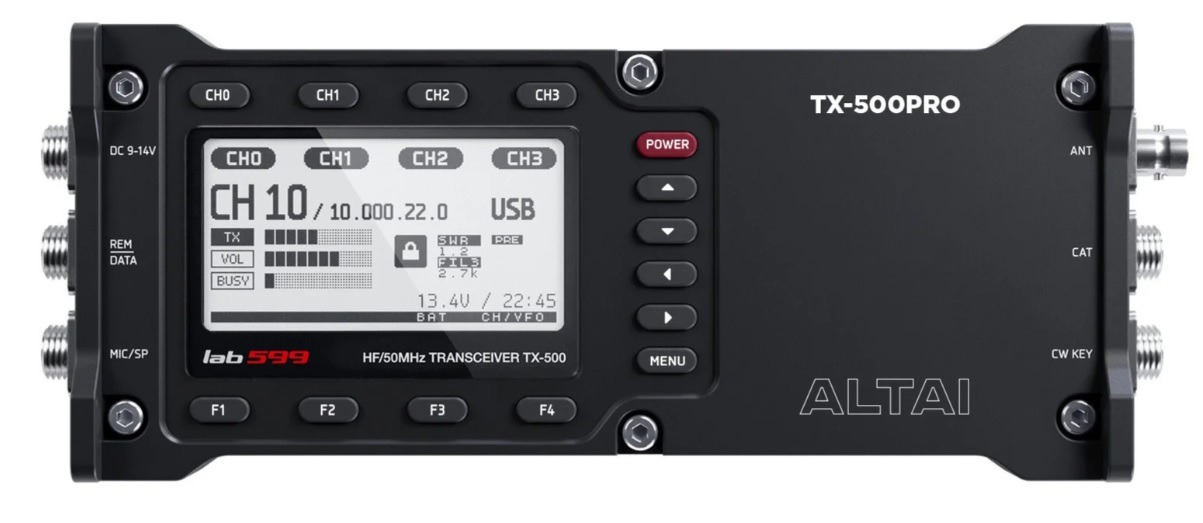

Discontinued TX-500PRO ALTAI HF/VHFL PORTABLE SDR TRANSCEIVER

The Lab599 TX-500PRO ALTAI professional shortwave radio is a compact and reliable solution for radio communications in remote and hard-to-reach areas, including areas with extreme operating conditions. It can be used for service, backup or emergency communication in various industries and economies.

The ALTAI model is designed with an emphasis on simplicity and reliability: the absence of encoders and additional function keys reduces the likelihood of errors in operation, increases the tightness of the case and the overall fault tolerance of the device.

The interface of the radio station is focused on working in the channel mode, is as simple and understandable as possible, and does not require special training of the operator. Support for PC channel programming and transfer software greatly simplifies setup and allows for quick commissioning.

Technical Features:

• Continuous frequency response: 0.5 - 56.0 MHz
• Adjustable power from 1 to 10 watts
• 100 programmable channels
• Support modulation: SSB (USB, LSB), CW, DIG, AM, FM
• Ability to connect an external digital speaker-microphone
• Efficient power consumption – up to 100 mA in receive mode
• External DC power supply 9-15V, 1 to 3A in transmission mode
• High-contrast monochrome LCD display, resolution 256×128 pixels
• Internal software update via USB interface
• software for programming channels from a PC
• D16t duralumin body
• Overall size (L×W×H): 228 × 90 × 30 mm
• Weight: 525 g

Package Contents:

• Handheld speaker-microphone (tangent)
• CAT-USB adapter
• Power cable
• MIC/SPK/PTT adapter (3.5mm jack)
• CW Adapter (3.5mm Jack)
• GX12 Plug, 7 Pin
