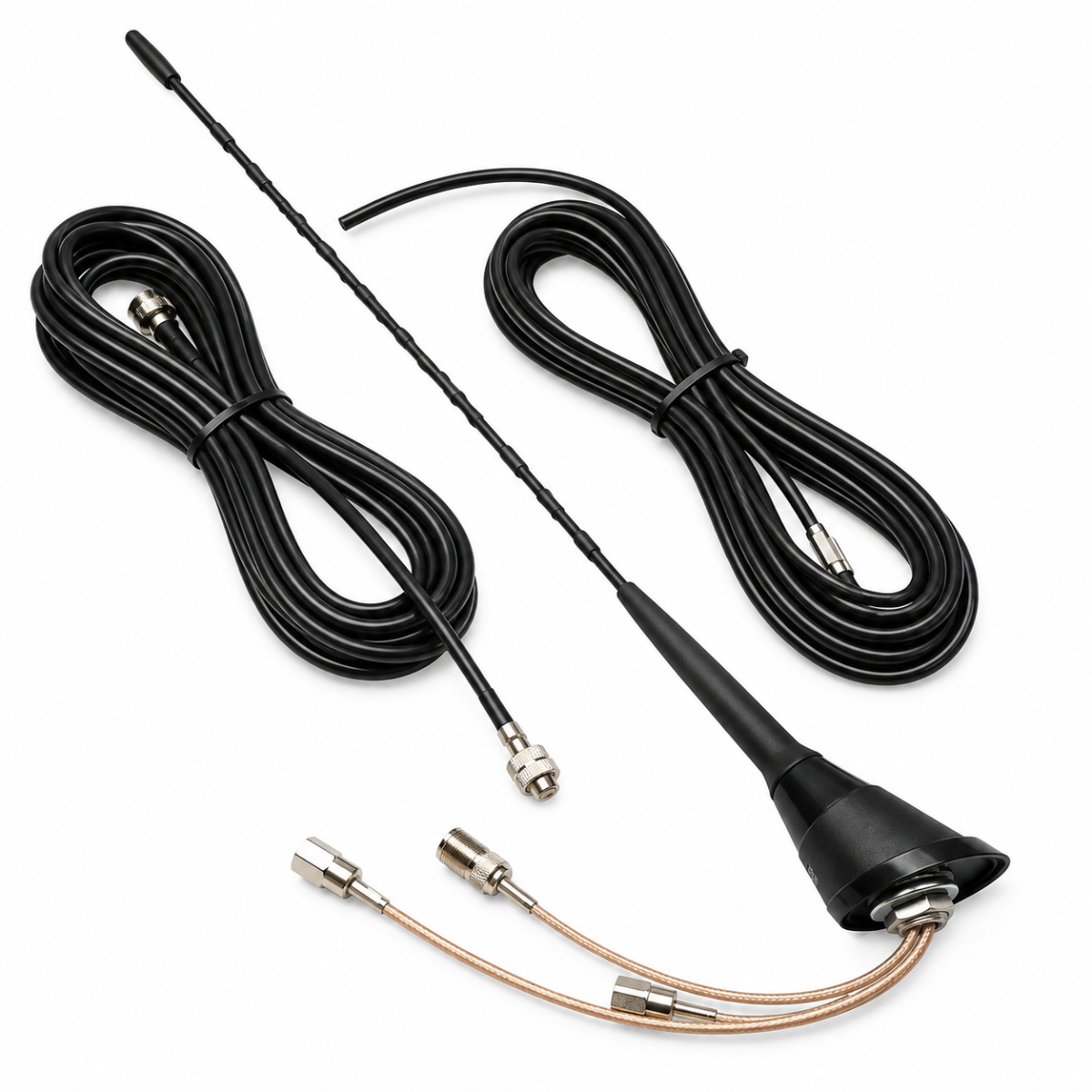

Sirio Tri-flex CB / AM-FM / GSM 900

Electrical Data:

Type:

• CB 27MHz band: 1/4 λ central loaded
• FM band: 1/4 λ helical loaded
• GSM 900MHz band: 1/4 λ

Frequency range:

• CB 27MHz band: 26.8 .. 27.6 MHz
• AM-FM band: AM 0.15-1.6 MHz FM 87.5-108 MHz
• GSM 900MHz band: TX 880-915 MHz, RX 935-960 MHz

Max Power:

• CB 27MHz band: 10 Watts
• GSM 900MHz band: 20 Watts

Bandwidth @ SWR ≤ 2:

• CB 27MHz band: ≥ 440 KHz (40 channel)
• GSM 900MHz band: ≥ 100 MHz

Cable length / Type / Connector:

• CB 27MHz band: 215 mm ( 0.71 ft ) / RG316 / FME-male
• AM-FM band: 165 mm ( 0.54 ft ) / RG316 / M10x0.75-male
• GSM 900MHz: 120 mm (0.39 ft) / RG316 / FME-male

Mechanical Data:

• Materials:Aluminium, Copper, Chromed brass, Nylon
• Height (approx):500 mm / 1.64 ft
• Weight (approx):120 gr / 0.26 lb
• Mounting type:Thru-Hole
