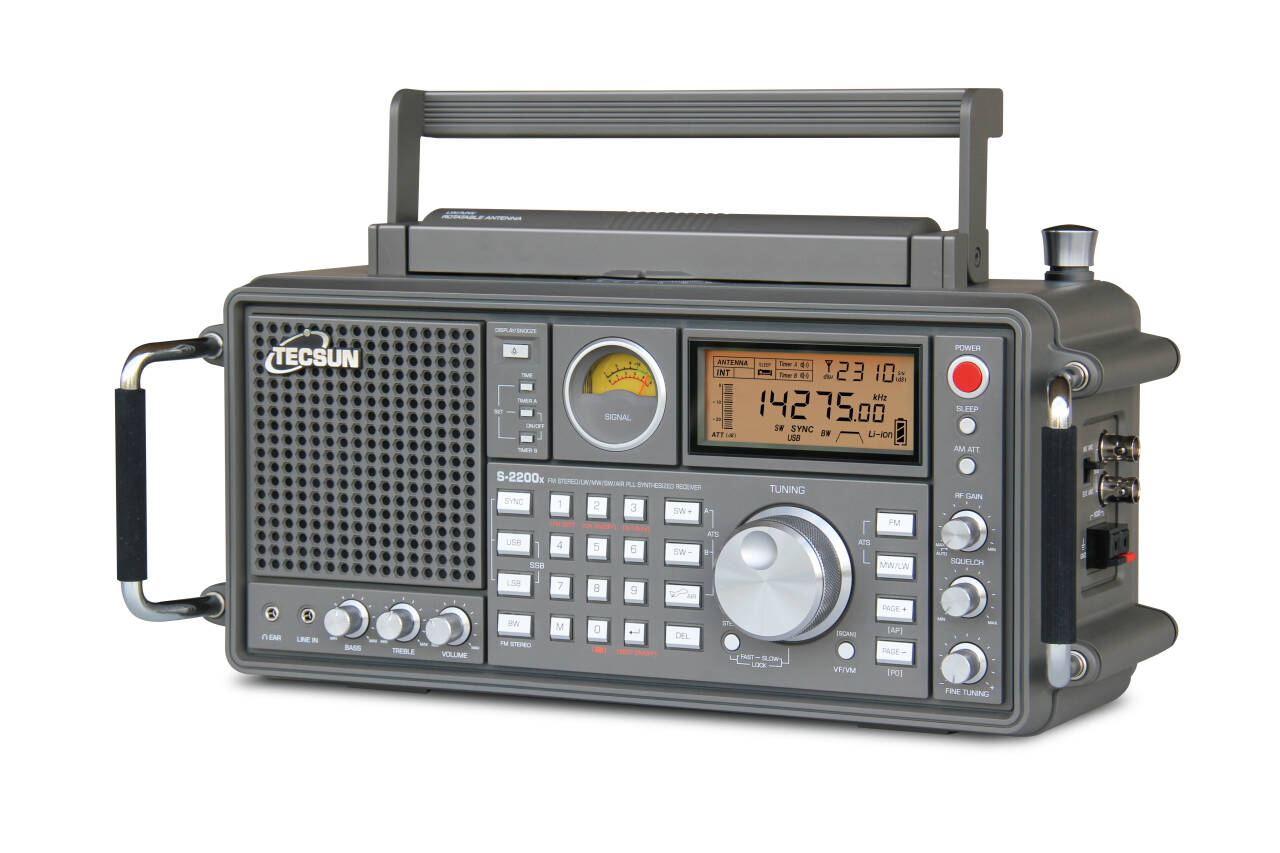

Tecsun S-2200X MW/LW/SW/SSB and AIR Band Radio Receiver

Tecsun's latest receiver S-2200X comes fully packed, with Squelch Control, RF Gain Control, Antenna Signal Attenuation, 5 AM bandwidth settings, Synchronous Detection and external antenna sockets

The S-2200x is the DSP successor of the successful dual conversion S-2000 radio receiver.

It can be used for listening to FM, longwave (LW), medium wave (MW/AM), shortwave (SW) and VHF airband, and it is single sideband (SSB) capable. FM: 64-108 MHz/ LW: 50-522 kHz/ MW (AM): 520-1710 kHz/ SW: 1621-29999 kHz/ Air: 118-137 MHz

S-2200x is equipped with an analogue high-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations.

Features

• Fitted with a 4-inch high-quality speaker with excellent sound quality
• Independent treble and bass audio controls
• Clock (24H), Alarm, Sleep Timer
• Built-in battery charging system for 18650 batteries
• Powered by two removable 18650 Li-ion or four D cell batteries

Specification

• Synchronous Detection technology to suppress adjacent signal interference
• Antenna signal attenuation and RF gain control to prevent strong signal overload and improve weak signal reception capabilities
• Squelch control to suppress background noise during listening to AM (LW, MW and SW) broadcasts and monitoring AIR band signals
• External antenna sockets for high and low impedance antennas
• Independent fast/slow and fine-tuning knobs
• Stores up to 9150 radio frequencies, divided over 25 memory pages
• Auto Paging (AP) to create and recall time-specific memories
• Automated and manual tuning features to easily tune and/or store frequencies
• Headphone output (3.5mm) suitable for FM-stereo listening
• Line-in and line-out socket
• Weight: Approx. 2430g
• Dimensions: W-372 x H-183 x D-153 mm

Included Accessories

When you purchase the Tecsun S-2200X, you receive a comprehensive set of accessories that enhance its functionality. The package includes:

• A user manual to guide you through the features
• Two rechargeable 18650 lithium-ion batteries
• Two BNC plugs for creating custom antennas
• A USB to USB-C cable for charging the batteries

The inclusion of two BNC plugs allows users to innovate and create their own antenna setups, making the S-2200X a highly customizable device. The USB cable can be used with standard phone chargers, making it convenient to keep the batteries charged and ready to go.

USP of the S2200X :

• Rotatable Antenna

The rotatable antenna on the top of the radio is a significant asset. It allows users to adjust reception without having to move the radio itself, providing a more user-friendly experience.

• Multiple Antenna Options

With two BNC sockets for external antennas, the S-2200X offers flexibility in antenna selection. Users can choose to use either the built-in antennas or connect external ones, depending on their needs. Additionally, there is a high impedance 500-ohm wire antenna input, allowing for quick and easy connections to custom wire antennas.

• Audio Controls

The front panel features a range of audio controls, including bass, treble, and volume controls. These rotary controls have a smooth feel, allowing for precise adjustments to the received audio. An earphone socket is also available for private listening, alongside a line-in input for connecting external audio sources like smartphones or MP3 players.

• Advanced Tuning Capabilities

The S-2200X includes a large tune VFO control, which is typically found on ham radio transceivers. This feature allows for both fine and fast tuning, making it easier to lock in on desired frequencies. The radio also has dedicated buttons for switching between upper and lower sideband modes, essential for listening to ham radio bands.

• Operational Ease

One of the advantages of the Tecsun S-2200X is its user-friendly operation. While the user manual covers all features and functions, many users may find they can operate the radio effectively without it. The layout is intuitive, with clearly labeled controls and functions.

The radio’s automatic RF gain control and squelch settings simplify the user experience. By turning these controls fully anticlockwise, users can activate automatic settings, allowing the radio to adjust based on signal strength without manual input.

For detailed review of the product, visit our blog on the S2200X!
