About RigExpert Stick XPro (0.1 - 1150MHz) Analyser

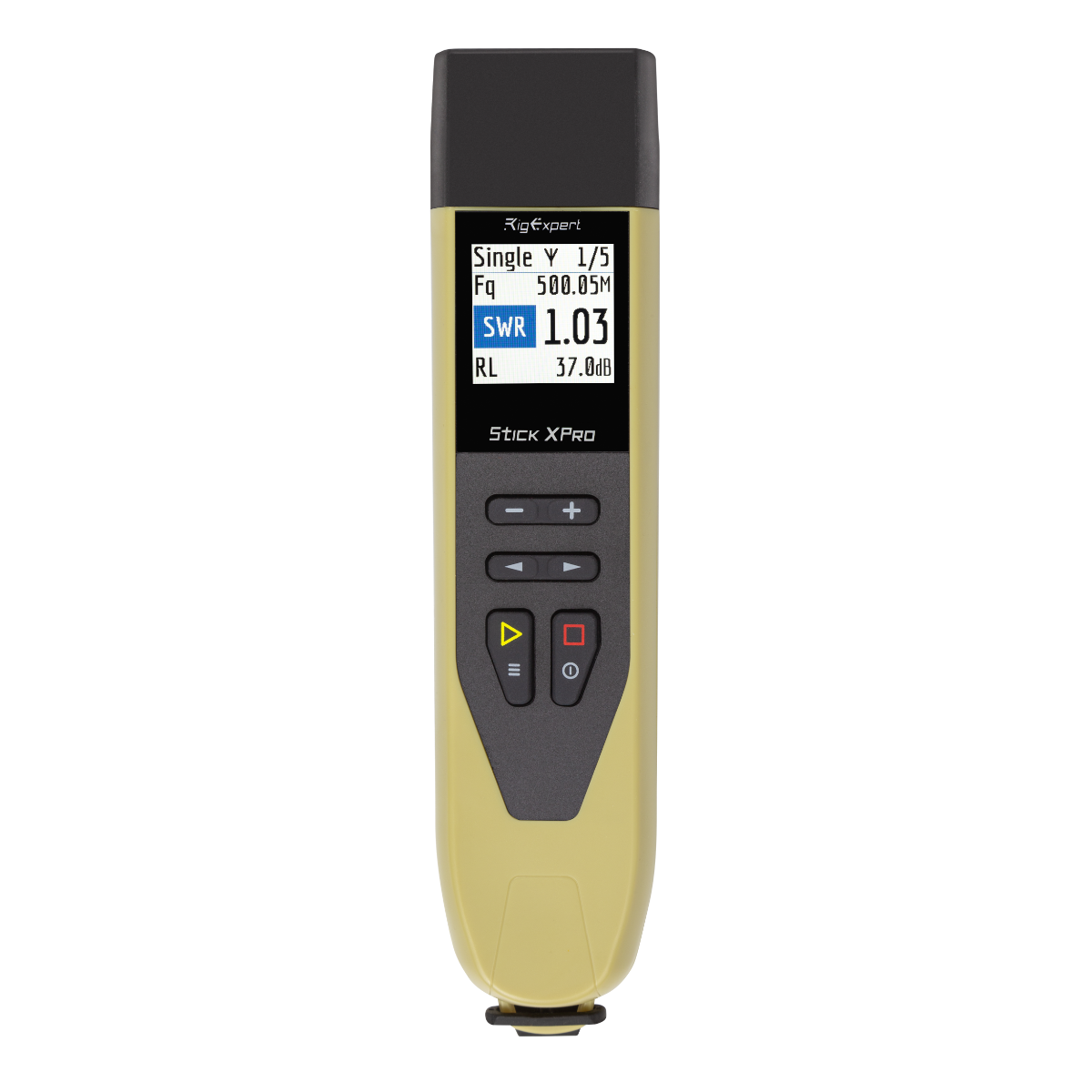

Stick XPro is a vector analyzer that simply and accurately measures all the main parameters of various RF devices and systems in the frequency range from 0.1 MHz to 1150 MHz.

Key Features/Specifications:

  • Frequency range: 0.1 ~ 1150 MHz
  • Frequency input step: 1 kHz
  • Measurements for 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
  • SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
  • Range R and X: 0… 2000, -2000… 2000
  • Operating modes:Multé (quick check of multiband antennas), HAM (quick check of single band antenna) Single (measure SWR, |Z|, R, X, C, L, RL, Mag & Phase), TDR (distance to fault), SWR chart, Return Loss chart, RX Chart OSL calibration mode, Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
  • HF output: Connector type: N-type. Output signal shape: square, from 0.1 to 1000 MHz. Output power: -10 dBm (at a load of 50 Ohms).
  • Power: One Lithium-ion 18650 (included). Сharge time: 3 hours when using a charger. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
  • Interface: TFT display, 220х220 pixels resolution. 2 × 3 keys on the waterproof keyboard. English (by default) and Japan menu and help screens. USB connection to a personal computer
  • Bluetooth: ver. 4.2 BLE Single-mode, Class B, via USB 2.0 Type-C
  • Dimensions: 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
  • Operating temperature: -20°- 55°C (-4°-131°F)
  • Weight: 185 grams (6.5 Oz) with battery
