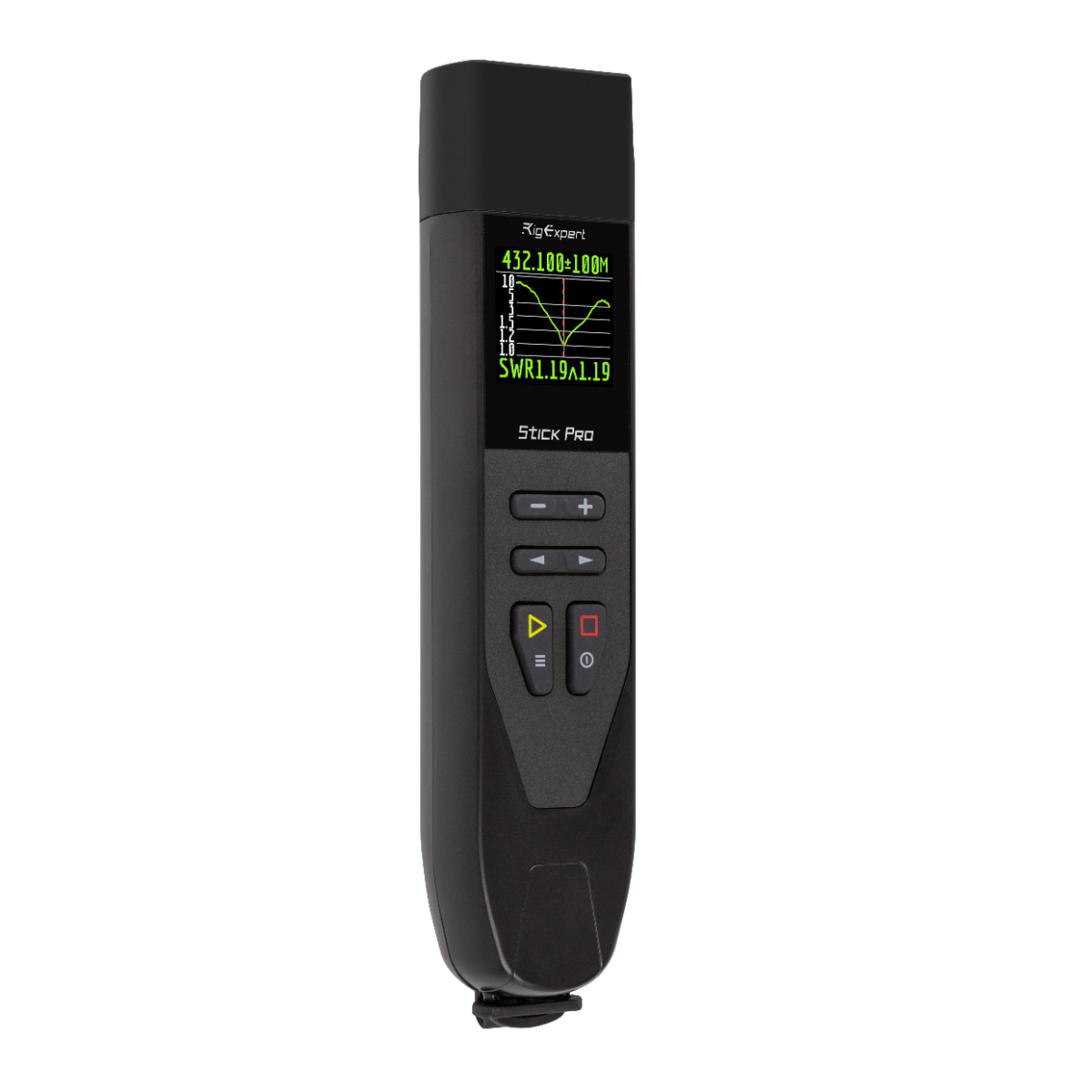

SOLD! B Grade RigExpert Stick Pro (0.1 - 600MHz) Analyser (Slight marks on the screen protector)

Specification

• Frequency: 0.1 to 600MHz
• Frequency input step: 1KHz
• Measurement for: 25, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
• >SWR measurement range: 1-100 in numerical mode / 1-10 in graph mode
• R&X range: 0… 2000, -2000… 2000
• Dimensions: 185mm x 40mm x 33mm
• Weight:185g with battery
• Operating temperature: 0-40 C (32-104 F)

Operating modes

• SWR return loss: R, X, Z, L, C magnitude and phase angle at one frequency
• SWR chart: 100 points
• Multé mode – for quick testing of a multi-band antenna

HF Output

• Connector type: N
• Output signal shape: square 0.1 to 600 MHz.
• Output power: -10dBm (at 50 Ohm load)

• One lithium-ion battery 3.7 V type 18650
• When the analyser is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface

• 200×200 colour TFT display
• 2 × 3 keys on the waterproof keyboar
• English menu and help screens
• USB connection to a personal computer
• Bluetooth: v.4.2 BLE Single Mode, Class B
