Rez Antenna Ranger 80 Portable HF Antenna Kit

Get on the air fast with the Ranger 80™ HF antenna system. The Ranger 80™ is a rugged, base loaded vertical, designed for portable, rapid deployment.

Perfect for ham radio portable operations such as Parks on the Air, field day, and emergency communications. Because of it’s superior build quality and reliability

The Ranger 80 is well suited for EmComm services and NGOs using the HF bands. Precision machined in the USA from premium materials, the Ranger 80™ coil will fine tune from 80 meters to 15 meters using the included heavy duty military whip.

The Ranger 80™ will handle up to 200 watts SSB and 100 watts digital (50% duty cycle). Our rapid-deploy radial system uses a custom radial “puck” that accepts up to eight 4mm banana plugs.

This enables quick attachment of the included 4 wire radial kit and leaves room to expand your radial field for increased performance. No more fumbling around with radial wire connections, just plug in and get on the air.

The antenna system mounts on the included ground spike or optional [z]Pod™ using standard 3/8-24 mounting hardware. This means it’s also compatible with many industry standard mounting accessories for ultimate flexibility.

The included 9.3 foot military whip sets up in seconds and collapses to a compact size for transport. When you’re done making QSO’s, the entire system packs neatly into the included backpack.

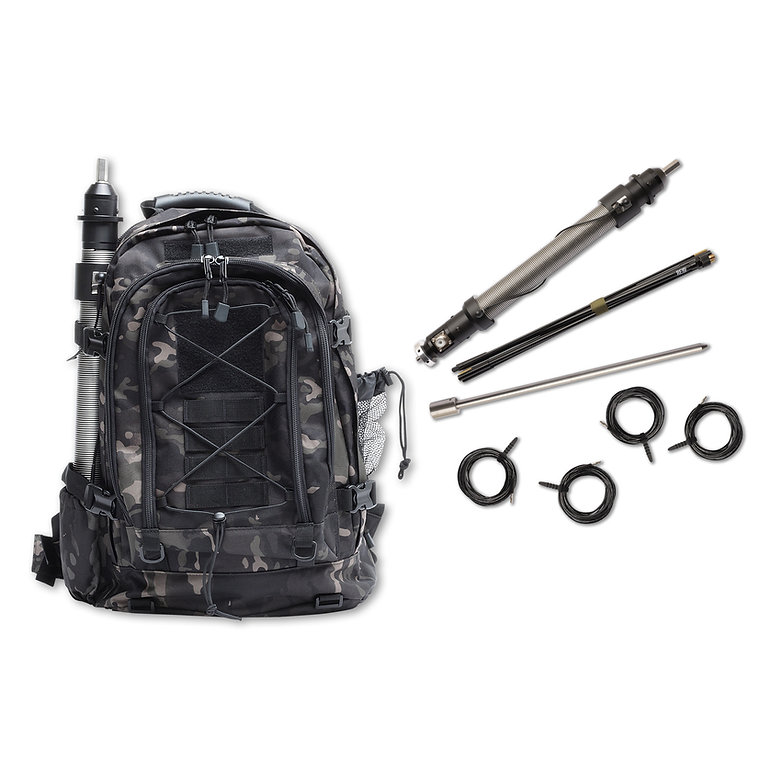

Whats in the box

• Ranger 80 Tuning Coil Base with Radial Puck
• Heavy Duty Military Whip
• Ground Spike
• 4 x 33' Radials with Silicone Wire Ties
• Military Style Daypack

Specification Militry whip

• 7-sections
• 9.3’ Long
• Stainless steel and brass construction
• Black Finish
• 3/8-24 mounting stud

specification Coil

• Physical Size: L 21” | Max. Dia. 2.25”
• Coil Wire: 14ga Solid Stainless Steel Wire
• Coil Form Construction: CNC Machined Delrin and Black Anodized 6061 aluminum
• Hardware: All Stainless Steel
• Coax connection: SO-239
• Power Handling: 200 watts SBB, 100 watts digital (50% duty cycle)
• Whip mount thread pitch: 3/8-24
• Base mounting stud thread pitch: 3/8-24

Spacification Radial system

• Radial wires: (4) 33’ 18ga stranded copper wire terminated with a 4mm banana plug.
• Radial puck: 6061 aluminum, accepts 3/8-24 threaded hardware and (8) 4mm banana plugs
