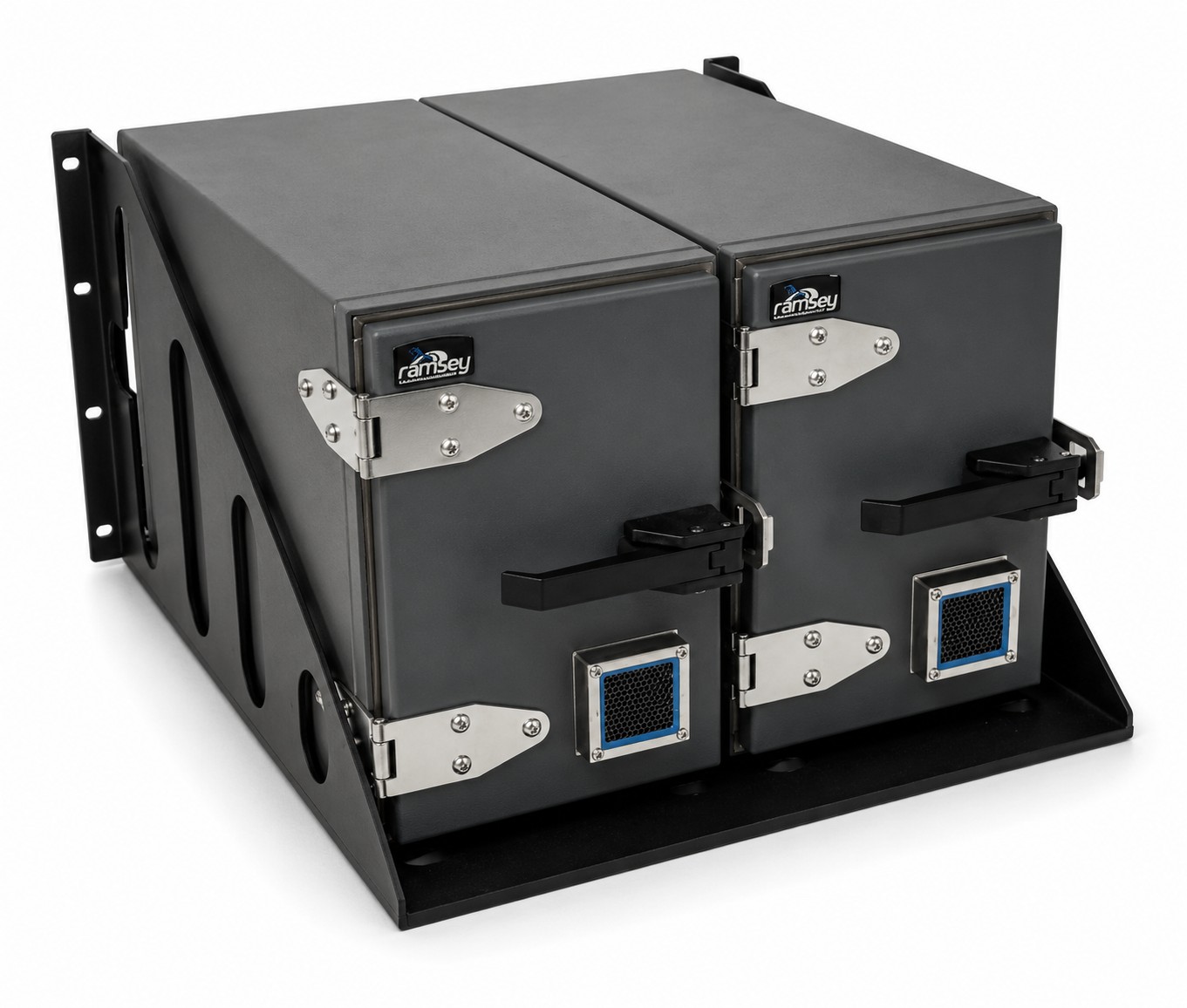

Ramsey STE2905M RF Shielded Test Enclosure

The Ramsey STE2905M RF Shielded Test Enclosure is a highly versatile, professional-grade RF isolation chamber designed to support a wide range of wireless testing, product development and validation applications. Unlike fixed-configuration test enclosures, the STE2905M is supplied as a customisable platform, allowing users to specify the exact interfaces, connectivity options and features required for their testing environment.

Built to order and fully customisable, the STE2905M is ideal for organisations requiring a tailored RF testing solution. Whether you are developing Wi-Fi, Bluetooth, RFID, cellular or IoT products, the enclosure can be configured with the interfaces, power options and cooling systems needed to support your specific workflow and device requirements.

Designed for laboratory, production, research and development environments, the STE2905M delivers exceptional RF isolation while providing the flexibility to adapt to evolving testing requirements.

Key Features

• Built to order and fully customisable to customer requirements
• Professional-grade RF shielded test enclosure
• Designed for a wide variety of RF testing applications
• Suitable for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 6E testing
• Ideal for Bluetooth, RFID, 3G, 4G and 5G device testing
• Precision-machined custom I/O panel configuration
• Integrated 60mm passive ventilation system
• Optional 12V DC, 115V AC or 230V AC fan cooling
• Front-loading swing-away access door
• Double-lip RF-tight gasket design
• RF absorbent foam liner
• Optional security locking latch available
• Manufactured using Ramsey's proven RF shielding technology

Applications

The STE2905M is designed for organisations that require a controlled RF environment for testing and evaluation, including:

• Wireless device development
• Wi-Fi router and access point testing
• Bluetooth device validation
• Cellular handset and modem testing
• RFID product development
• IoT device evaluation
• EMC pre-compliance testing
• Research and development laboratories
• Manufacturing and production testing
• Quality assurance environments
• Product certification preparation
• Custom RF testing applications

Its highly configurable design makes it suitable for both standardised testing procedures and specialised engineering projects.

Technical Overview

The STE2905M is engineered to create a controlled RF environment by significantly attenuating external and internal radio frequency signals. Shielding performance can exceed 95 dB at 2.4 GHz and 90 dB at 5.8 GHz, depending on the selected I/O configuration and options. This enables accurate and repeatable wireless testing without interference from surrounding networks and devices.

A key advantage of the STE2905M is its fully customisable architecture. Customers can specify a wide range of interface options including RF connectors, USB, Ethernet, fibre optic, video, serial, audio and filtered AC or DC power connections. All interfaces are integrated into a precision-machined I/O panel designed to maintain shielding integrity while supporting device connectivity.

The enclosure incorporates a 60mm passive ventilation system as standard, with optional fan-assisted cooling available for applications requiring additional thermal management. Combined with its RF absorbent foam lining and robust construction, the STE2905M provides a dependable platform for demanding wireless testing environments.

Custom-Built Solutions Available

The STE2905M is supplied as a bespoke RF testing platform and can be configured to meet your exact requirements. Available customisation options may include:

• Custom RF connector configurations
• USB, Ethernet and fibre optic interfaces
• Filtered AC and DC power entry
• Custom I/O panels
• Enhanced ventilation and cooling systems
• Security locking options
• Device-specific mounting arrangements
• Additional shielding and isolation requirements
• Country-specific power configurations

Our team can help specify the ideal configuration for your testing environment, ensuring your enclosure is optimised for performance, connectivity and operational efficiency.

Enquire today to discuss your RF testing requirements and receive a tailored quotation for the Ramsey STE2905M.
