Panorama B4BE-7-27-5SP – 2G/3G/4G Bracket Mount Antenna

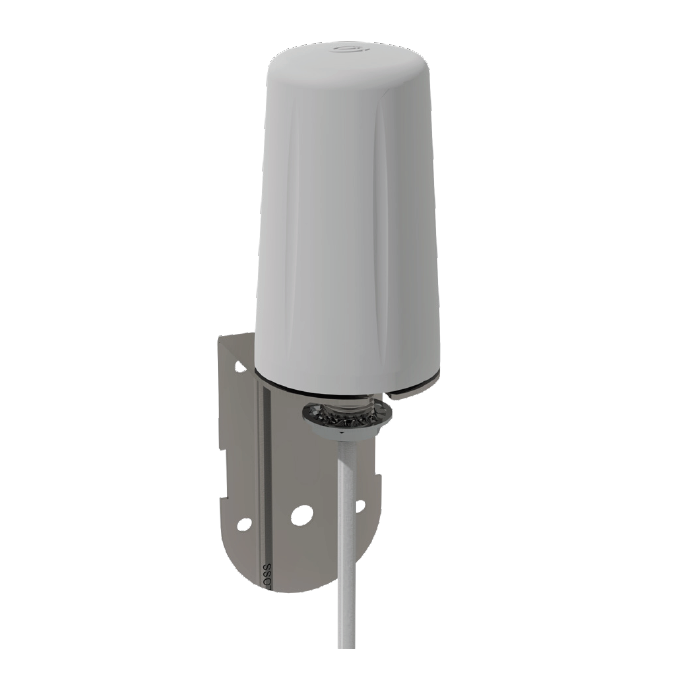

The B4BE antenna is a cost effective omni-directional broad band antenna for 4G/3G/2G devices and is suitable for external or internal installation. The design of the mounting bracket enables simple wall mounting using the supplied screws and wall plugs or mast mounting using a pipe clip or cable ties (not supplied).

The omni-directional radiation pattern allows easy placement of the antenna in an elevated position.

This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

Features:

• Cost effective 4G/3G/2G omni-directional antenna
• Wall or Mast Mounting
• Simple installation

Technical Specifications:

• Frequency Range (MHz): 698-960, 1710-2700
• Operational Band: LTE 700, AMPS / GSM850, GSM900, GSM1800, PCS1900, 3G UMTS, 2.4GHz, 2.4GHz, WiFi, 2.6GHz LTE
• VSWR: <2.5:1
• Peak Gain – Isotropic: 698-960MHz: 2dBi, 1710-2700MHz: 4dBi
• Radiated Efficiency*: >70%
• Pattern: Omni-directional
• Polarisation: Vertical
• Impedance: 50Ω
• Max. Input Power: 60W
• Height Mounted: 164mm (6.46”)
• Diameter: 48mm (1.89”)
• Operating Temperature (°C): -40°/+85°C ( -40°/185°F)
• Material: ABS., Aluminium and Galvanised Steel
• Colour: Black & Natural
• Ingress Protection: IP66
• Fixing: Wall mount or Mast mount
• Mounting Bracket Height: 82mm (3.2”)
• Recommended Mounting Bracket Screw Fixings: 4mm (0.16”)
• Cable Type: CS29
• Cable Diameter: 5mm (1.9”)
• Cable Length: 5m (16’4)

*Measured with 5m of CS29 cable.
