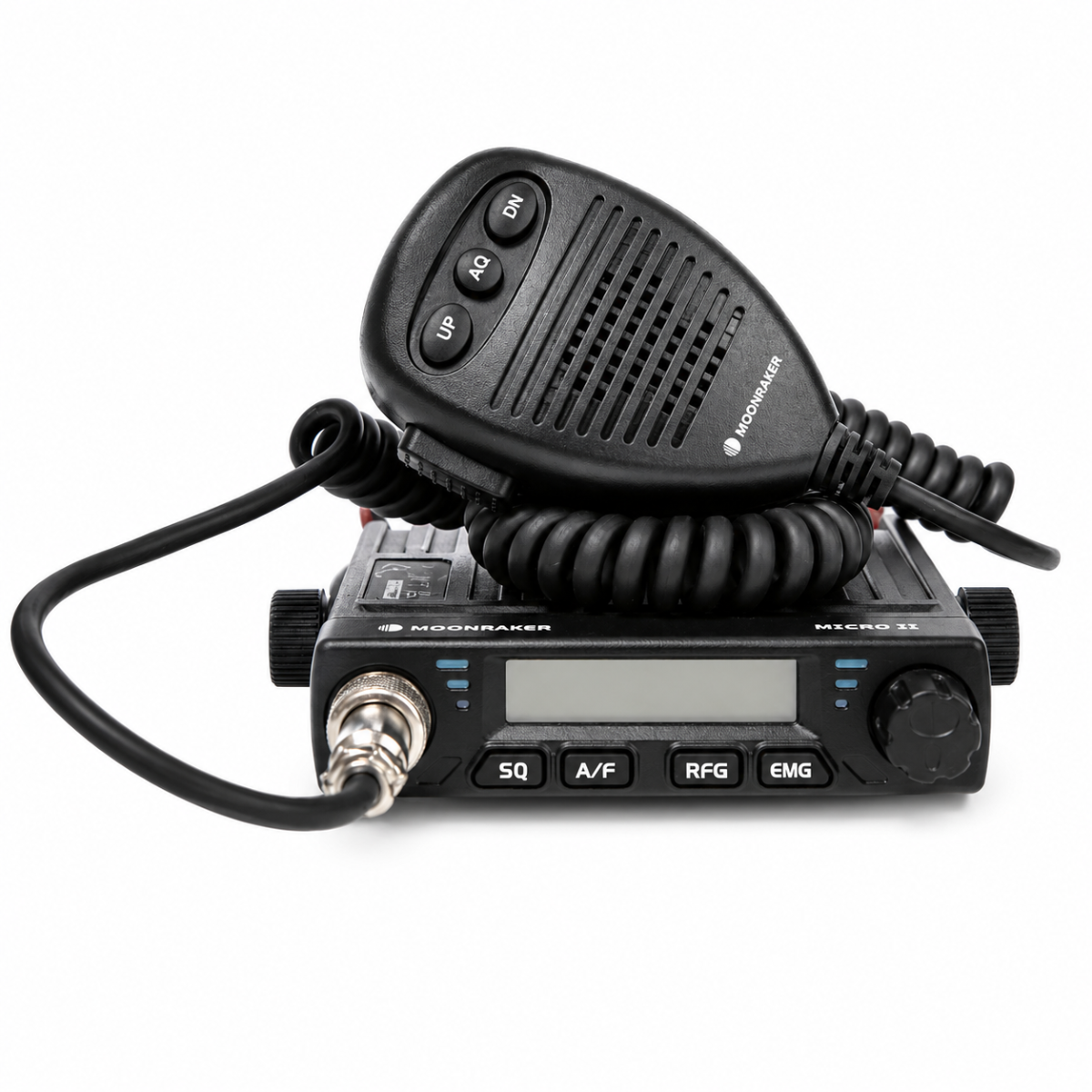

MOONRAKER MICRO II UK/EU Mobile CB Transceiver

The Moonraker MICRO II Multi-Standard CB Transceiver is a compact and versatile CB radio designed for drivers who want reliable communication without taking up valuable space in the vehicle.

Its multi-standard operation makes the MICRO II ideal for use across the UK and Europe, allowing the radio to be configured for the appropriate CB standard when travelling between countries. The compact design makes installation easy in cars, vans, 4x4s, motorhomes and commercial vehicles where space is limited.

With straightforward controls, clear audio and a practical, easy-to-read display, the MICRO II is equally suitable for experienced CB users and anyone fitting their first mobile CB radio.

Whether it’s being used for convoy communications, off-roading, commercial vehicles, motorhomes or general CB use, the MICRO II provides a neat, dependable and affordable mobile communications solution.

Specification

• Modulation Mode: FM
• Frequency Range:26.565 - 27.99125 MHz(Multi standard)
• Frequency Control: P.L.L.
• Frequency Tolerance: ±5.0ppm
• Operating Temperature: -20°/+50°C
• DC Input Voltage: 13.2V
• Dimensions: H-104mm × W-108mm × D-25mm
• Weight: 416g
• Antenna Connector: SO239
• Current drain Transmit: 2A MAX /Receive: Squelched 0.3A /VOL Max: 0.8A

Transmitter

• Power Output: 4 Watt FM
• Transmission Interference: inferior to 4nW (-54dbm)
• Frequency Response: 300-3000Hz
• Modulation Signal Distortion: inferior to 5% Output
• Impedance: 50 ohms

Receiver

• Sensitivity: Less than 1uV for 10dB(S+N)/N
• Image Rejection: 70dB
• Adjacent Channel Rejection: 60dB
• IF Frequencies: 1st 10.695MHz 2nd 455KHz
• AGC: Less than 10dB change in audio
• Squelch: Output for inputs from 10 to 50000uV /Less than 1uV
• Audio Output Power: 1 Watt
• Frequency Response: 300-3000Hz
