Minor II Plus CB Radio - Bundle Deal
SKU :
10-103 Bundle

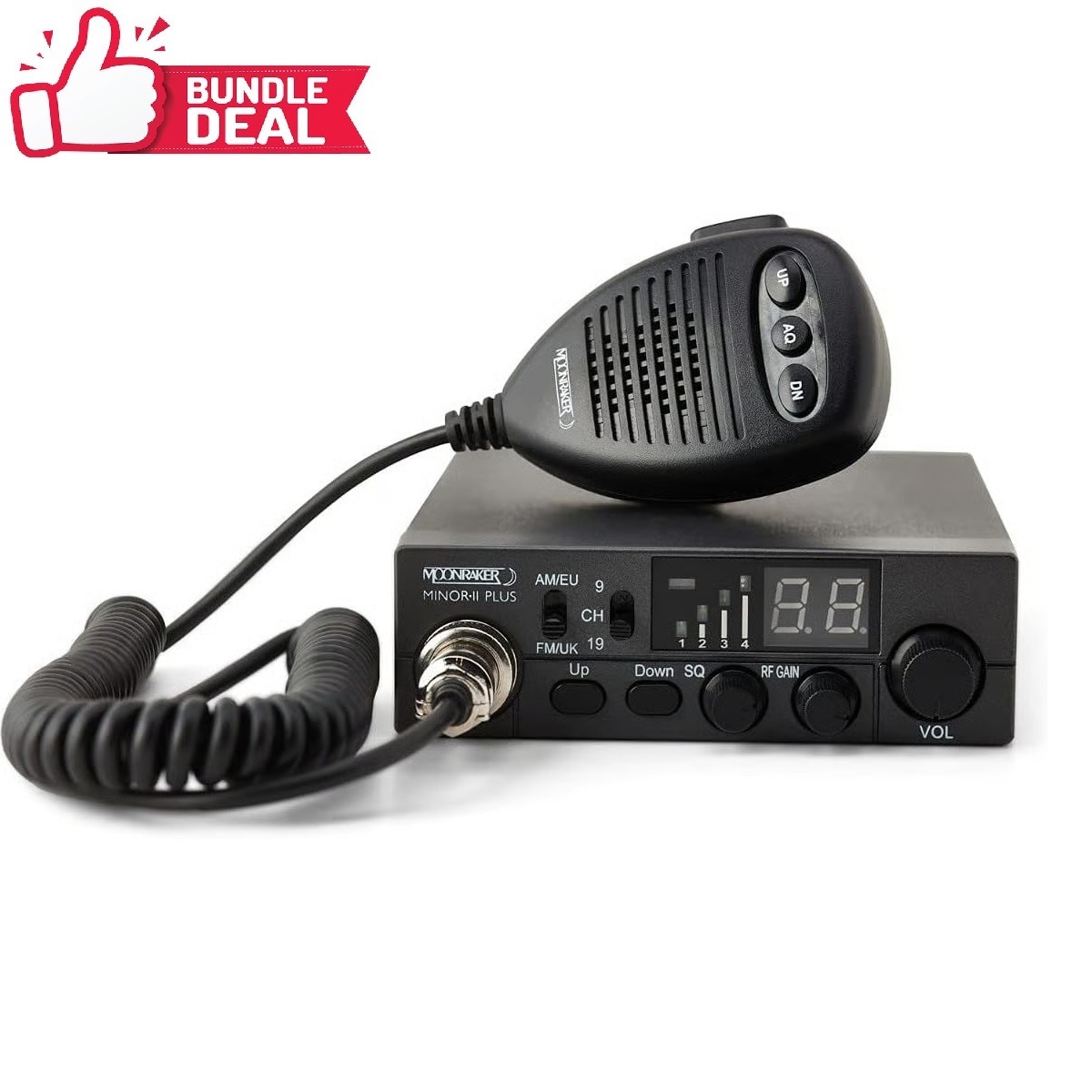

Minor II Plus CB Radio - Bundle Deal
£49.95
Prices include local VAT for Eurozone customers.
We ship DPD to the Eurozone - no extra fees on delivery.
For accurate pricing, select your country:
About Minor II Plus CB Radio - Bundle Deal
Get the best prices and ham radio deals at Moonraker - just check out this great Bundle Deal on the Moonraker Minor II Plus Transceiver.
A high quality CB rig covering all standard CB frequencies. The Minor II (works on both 12v and 24v)
Included with the radio is a DC lead with fitted cigarette plug, perfect for connecting straight to the car or van, as well as a command microphone.
Also supplied with the kit is a mounting bracket, with thumb screws, as well as a microphone hanging bracket.
Features
- Frequency Range: 26.965-27.405-27.60125-27.99125 MHz
- Channels: 80 FM
- DC input voltage: 13.8Vdc, plus mn:15%
- Dimensions: H-38mm x W-115mm x D-150mm
- Weight: 0.8kg
Transmitter
- System CPU controlled: P.L.L. synthesizer
- Maximum RF power: 4W at 13.8Vdc
- 1.8 KHz plus mn 0.2KHz (FM)
- ANT impedance: 50ohm unbalanced
- Current drain: 1000mA (at no modulation)
Receiver
- System CPU controlled: Double conversion super
- IF: 1deg: 10.7MHz / 2deg: 450 KHz
- Sensitivity: -120dBm for 12dB SINAD (FM)
- -107dBm for 12dB SINAD (AM)
- Audio output: @10% THD 2.5W at 8 ohm
- Audio distortion: alt 8% at 1 KHz
- Image rejection: 65dB
- Adjacent channel: 85dB
- Signal rise ratio: 45dB
- Current drain: 220mA
Check Out Our Exclusive Moonraker Minor II Transceiver Bundles:
- CB KIT 11 - CB Radio Kit 90 (Radio, Antenna & Mag Mount)
- CB KIT 13 - CB Radio Kit 90 (Radio, Antenna & Gutter Mount)
- CB KIT 14 - CB Radio Kit 155 (Radio, Antenna & Gutter Mount)
- CB KIT 15 - CB Radio Kit 90 (Radio, Antenna & Rail Mount)
- CB KIT 16 - CB Radio Kit 155 (Radio, Antenna & Rail Mount)
- CB KIT 17 - CB Radio Kit 90 (Radio, Antenna & Mirror Mount)
- CB KIT 18 - CB Radio Kit 155 (Radio, Antenna & Mirror Mount)
