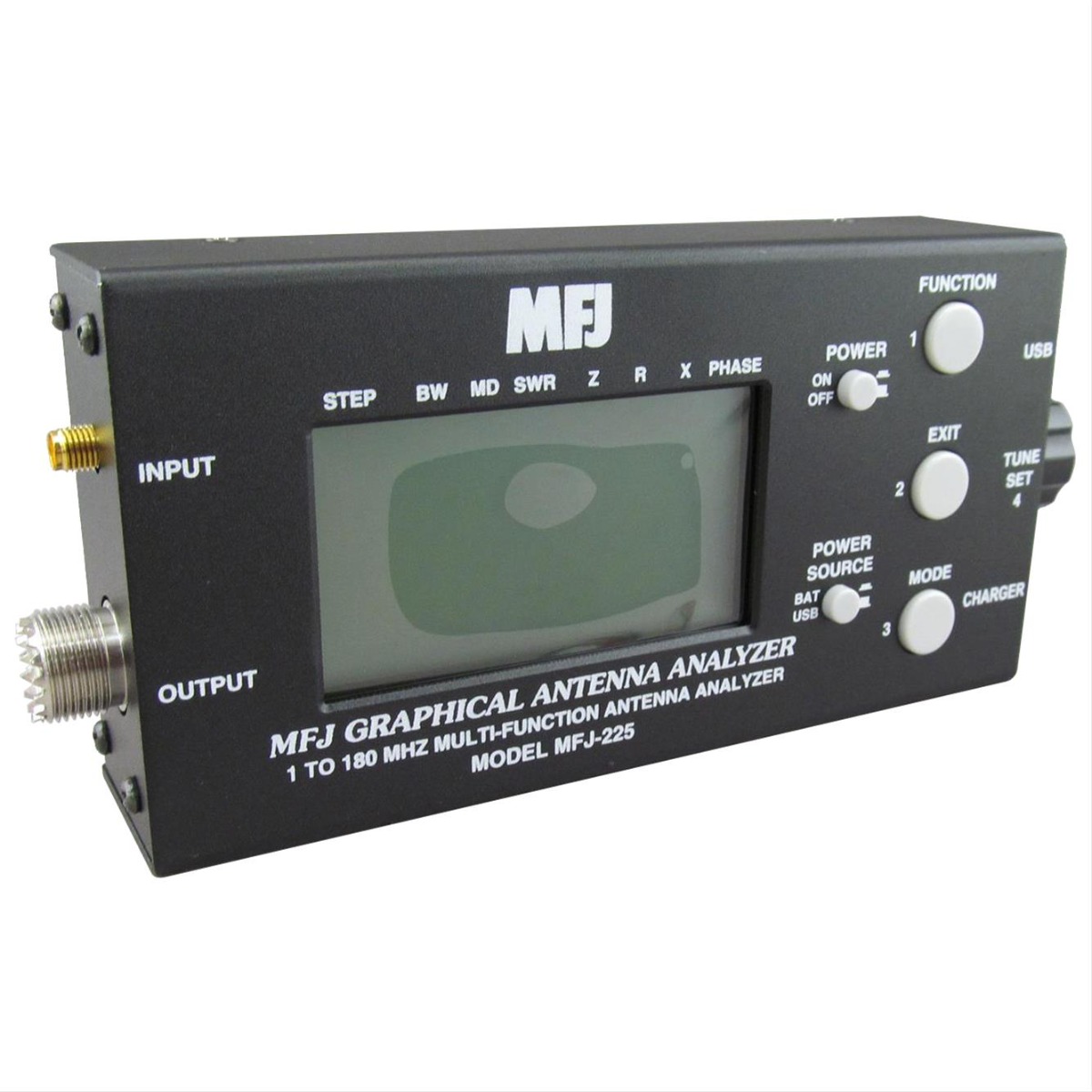

MFJ-225 - Graphic Antenna Analyzer (1.8-170 MHz)

All the basic analyzer functions you've come to depend on plus a host of advanced features like builtin LCD graphics, two-port VNA measurement, PC-Interface using IG-miniVNA freeware, and precise DDS frequency control . . . yet still easy-to-use!

Key Features/Specifications:

• Built-in back-lighted 3-inch LCD graphic display
• Continuous HF-VHF Coverage
• Tunes from 1.5 MHz to 179.9 MHz with rock-solid stability and no gaps
• Powerful Clean Signal Source
• SWR (1:1 to 9.9:1)
• Complex Impedance (R+jX)
• Impedance Magnitude (Z)
• Return Loss (RL, 0-30dB)
• Phase (0-180°)
• Capacitance (0-9999pF)
• Inductance (.1uH-80uH)
• Cable Length (0.5-45m)
• Cable Loss (0-30dB)
• Two-Port Flexibility
• Self-Calibrating
• MFJ-225 requires 4 NiMh AAAcells or optional power adapter MFJ-1312
• PC interface requires a USB Type-B cable.
• Analyzer's OUT port is SO-239. IN port is SMA-female.
• 3 3/32 W x 6 1/8H x 1 1/2D inches.
• Weight with batteries is 1-lb., 2-oz.
• Typical 12V power consumption is 230 mA, increasing to 550 mA when batteries are recharging at max.
