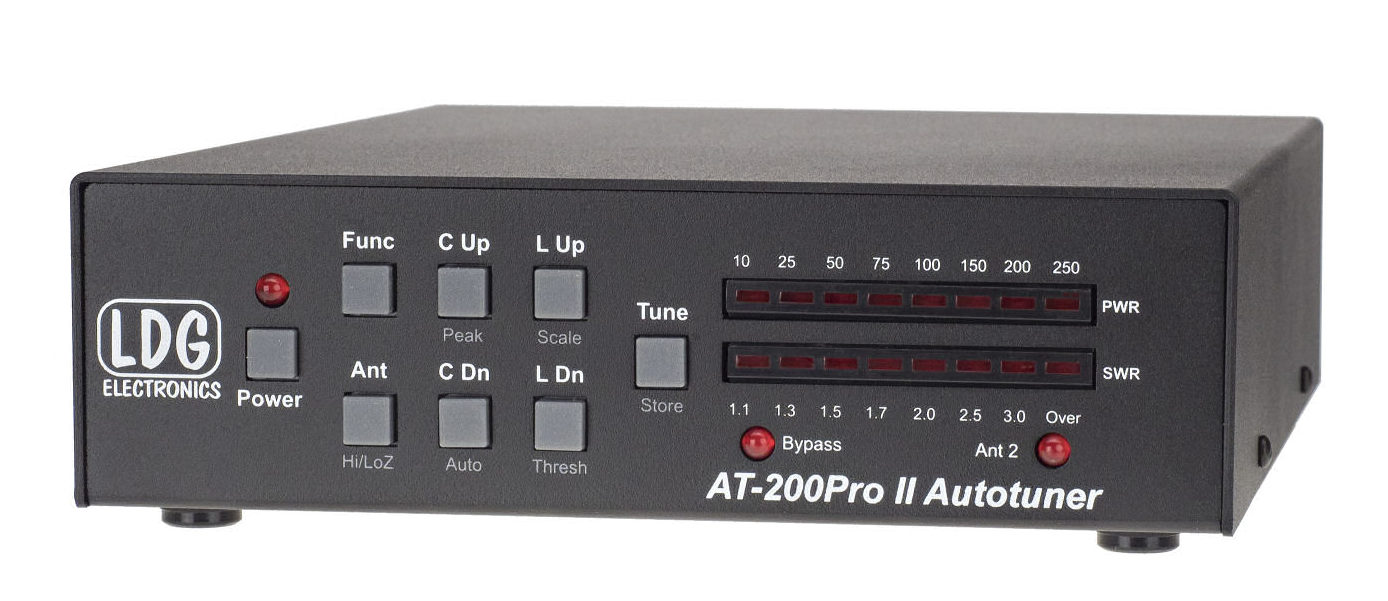

SOLD! B GRADE LDG AT-200 PRO II - Automatic Antenna Tuner (GOOD CONDITION)

The LDG AT-200ProII is a general purpose automatic tuner suitable for any amateur application.

Like most LDG tuners the it operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. It also features LDG’s advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. You can also start a tuning cycle manually whenever necessary.

Please Note When used with radios like the IC-7300,FTDX10 or TS-890 in bypass mode the tuner will pass 70MHz with minimal loss but will not tune at that frequency

Specifications

• 5 to 250 watts SSB and CW. (100 watts on 6M)
• Easy to read LED bar graph display for RF power, SWR and status
• 16,000 3D memories for instantaneous band changing
• Two position antenna switch with memories for four antennas on each position
• Tuning time: 0.5 to 6 seconds full tune, < 0.1 second memory tune
• Frequency coverage: 1.8 to 54.0 MHz.
• Tunes 6 to 1000 ohm loads (16 to 150 ohms on 6M)
• For Dipoles, Verticals, Vs, Beams or and Coax Fed Antenna
• Optional interfaces for Icom and Yaesu available
• Power requirements: 11 to 16 volts DC at 750 mA max during tuning
• Enclosure: D-9.5 x W-7.1 x H-2.0 inch
