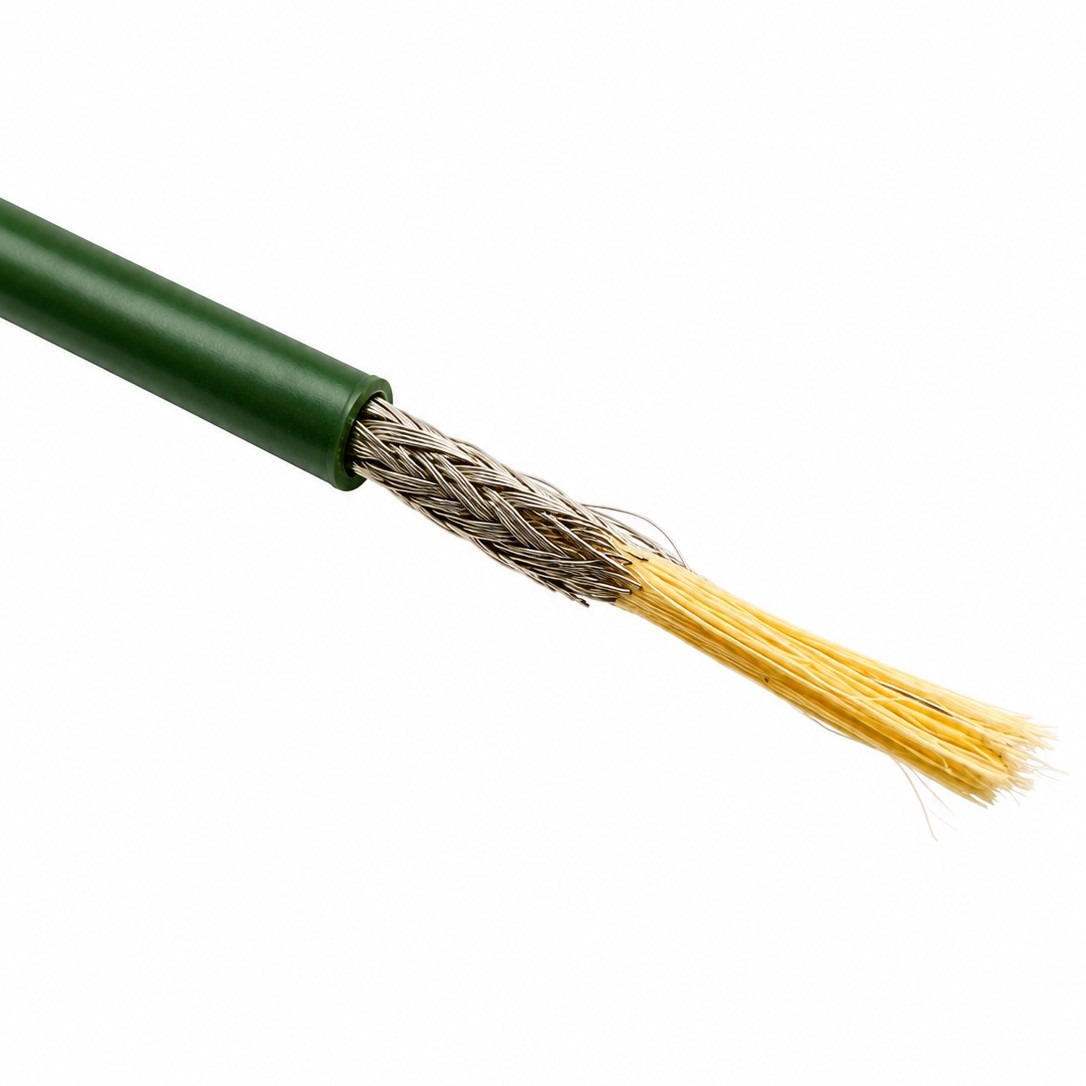

KEVLAR 32 Heavy Duty Antenna wire (Made with Kevlar) Per Metre

Kevlar heavy duty 3.2mm HD 5kw high power antenna  wire

High Power - Military style Aramid (Kevlar) heavy duty Antenna Wire in Chrome Green colour, priced here by the metre.

Simply the best type of wire to use for all of your antenna projects.

This Kevlar is light and amazingly strong, and finished in a discreet chrome green colour for minimum visual impact

Specification

• Breaking strain in excess of 150Kg
• Conductor: tinned copper wire braid 16/8/0.10mm BS EN 13602:2002 Min 95% Optical Coverage
• Jacket PVC Type 4 C54/45 Minimum 0.50mm RTI RAL 6020 Chrome Green
• Nominal Conductor Resistance >500 M/KM @ 1000V
• Minimum Insulation Resistance +100°C
• Centre made of Continuous Filament
• Aramid and Polyester High Tenacity yarn: 10,080 dTtex + 6,600 dTex
• Maximum Operating Temp: -60°C
• Minimum Cold Bend Temp: -40°C
• Minimum Cold Flex Temp
• Minimum Break Load: 90 KGF
• Minimum Break Force: 0.8826 kN
• Maximum Elongation @ 20°C: 2% @ 660 N
• Minimum Recommended Bend Radius: 5.60 mm
• Nominal Weight: 22 KG/KM
