ICOM ID-5200 144/430 MHz Dual Band Transceiver

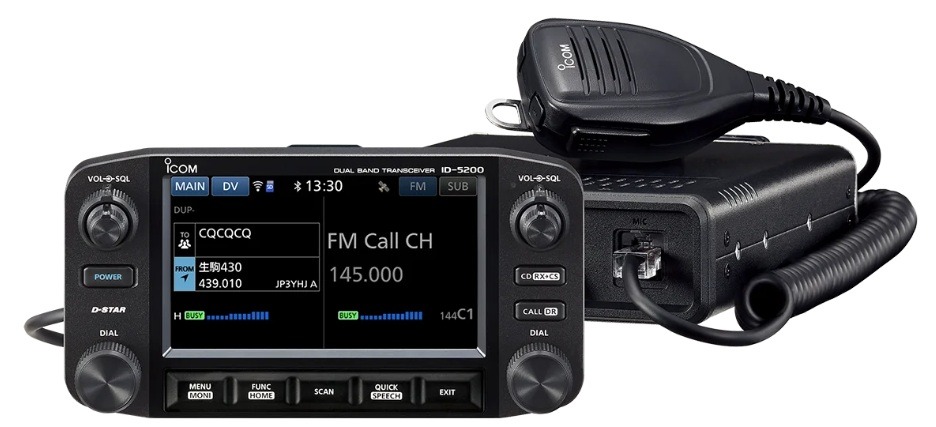

Icom ID-5200E 144/430 MHz Dual-Band D-STAR Mobile Transceiver

Please Note: No Further Discounts Available On This Item

The Icom ID-5200E is Icom's latest generation 144/430 MHz dual-band mobile transceiver, combining powerful 50W FM and D-STAR digital operation with a large 4.3-inch colour touchscreen, waterfall display and advanced wireless connectivity.

Designed as the successor to the hugely popular ID-5100E, the ID-5200E brings Icom's mobile VHF/UHF platform right up to date. Independent controls for the A and B bands, true simultaneous dual-band reception and a clear colour display make the radio equally at home in the vehicle or as part of a sophisticated home amateur radio station.

Large 4.3-Inch Colour Touchscreen & Waterfall Display

The bright 4.3-inch colour touchscreen provides an intuitive way to control the radio and view operating information. The ID-5200E is also the first Icom mobile transceiver to incorporate a waterfall display, allowing you to see nearby signal activity and quickly identify active frequencies.

True Dual-Band Operation

The ID-5200E supports simultaneous dual receive with FM/FM, FM/DV and DV/DV combinations. Independent tuning dials, volume and squelch controls for the A and B bands make operating two frequencies straightforward and intuitive.

Advanced D-STAR Operation

For D-STAR users, the ID-5200E offers an extensive range of digital features including Terminal Mode, Access Point Mode, DV Repeater Monitor and image transmission and reception. Built-in Wi-Fi further expands the possibilities for network-connected D-STAR operation.

Built-In Wi-Fi & Bluetooth

Integrated Wi-Fi and Bluetooth provide flexible connectivity with compatible smartphones, PCs and accessories. The built-in Wi-Fi access point capability also makes Terminal and Access Point operation more convenient where an Internet connection is available.

Wideband Receive Coverage

In addition to amateur radio operation on 2 metres and 70 centimetres, the ID-5200E offers wide receive coverage from 118–174 MHz and 225–550 MHz, including AM reception for monitoring compatible airband transmissions.

Key Features

• 144/430 MHz dual-band FM and D-STAR mobile transceiver
• 50W maximum transmit power
• Large 4.3-inch colour touchscreen display
• Built-in waterfall display for visual signal monitoring
• True simultaneous dual-band reception
• FM/FM, FM/DV and DV/DV dual receive
• Independent A and B band tuning, volume and squelch controls
• Built-in Wi-Fi connectivity and access point capability
• Built-in Bluetooth connectivity
• D-STAR Terminal Mode and Access Point Mode
• DV Repeater Monitor function
• Image transmission and reception
• Wideband receive coverage including airband
• 1,054 memory channels including scan-edge and call channels
• Flexible remote-head mounting options for mobile installations
• APRS support planned via a future firmware update

Technical Specifications

• Transmit frequency: 144–146 MHz / 430–440 MHz
• Receive frequency: 118–174 MHz / 225–550 MHz
• Operating modes: DV, FM, FM-N, AM receive and AM-N receive
• Output power: 50W High / 15W Mid / 5W Low
• Power requirement: 13.8V DC
• Maximum current drain: 13A
• Memory channels: 1,054
• Audio output: 2.5W typical into 8 ohms
• Main unit dimensions: 150 × 40 × 171.5mm
• Controller dimensions: 163 × 83.5 × 24.1mm
• Main unit weight: approx. 1.28kg
• Controller weight: approx. 260g

A New Generation of Icom Dual-Band Mobile Radio

Whether you're operating local FM repeaters, exploring D-STAR, monitoring two bands simultaneously or looking for a premium VHF/UHF installation for your vehicle or shack, the Icom ID-5200E combines traditional Icom build quality with a significantly more modern operating experience.

Now in stock at Moonraker – order today for fast UK delivery.
