About Icom IC-T10 - VHF/UHF Dual-Band FM Transceiver

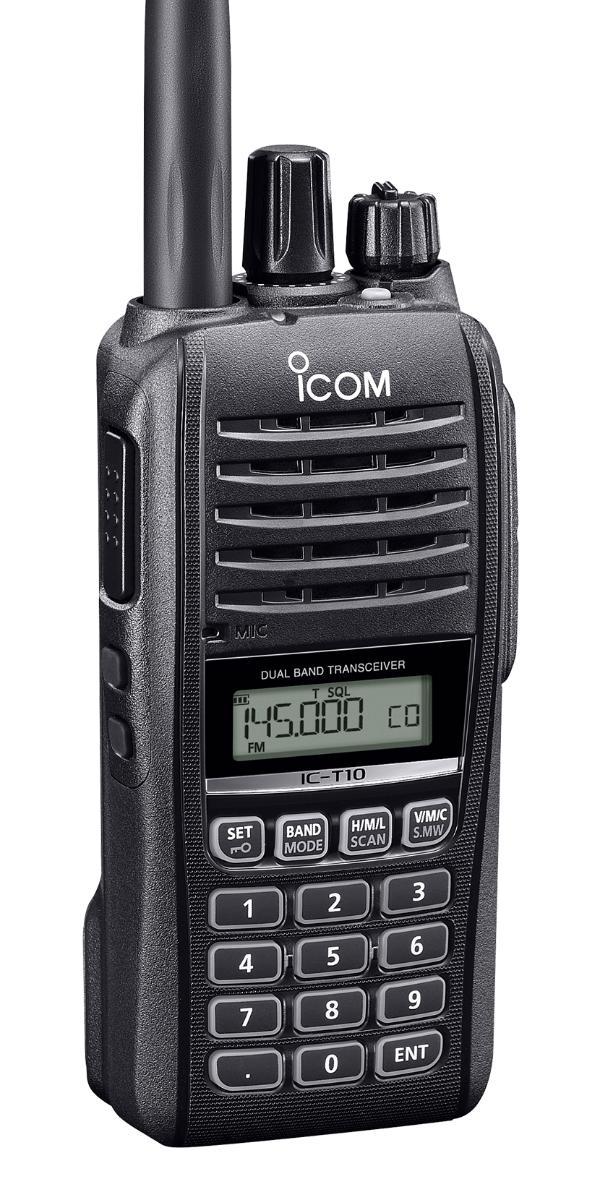

IC-T10 - New 5W VHF/UHF Dual-band amateur handheld radio from Icom.

The IC-T10 has been built to the high-quality commercial spec that you would expect from Icom. The radio features a clear easy to use layout, rugged commercial build, IP67 dust-tight specification and waterproofing, 1500mW loud audio and long-lasting Li-Ion battery life all making it an ideal radio for beginners and seasoned Amateur radio enthusiasts alike. Its strong Mil-Spec build and range of features will also make it a practical dual band radio for voluntary Amateur radio emergency services such as Raynet.

Features:

  • 5W RF output in 144 and 430 MHz
  • Large speaker provides 1500 mW loud and intelligible audio
  • IP67 dust-tight and waterproof construction
  • Up to 11 hours* operating time with supplied 2400 mAh (typ.) Li-Ion battery pack
  • Home button on top panel provides quick access to calling channel
  • FM broadcast receiver
  • Built-in CTCSS/DTCS for repeater operation
  • 16 DTMF autodial memories
  • Priority, program, memory, skip and tone scan capabilities
  • Free downloadable CS-T10 programming software
  • Optional HM-222HLWP speaker microphone provides loud audio

* VHF 11 hours, UHF 10 hours (approx.) at 1:1:8 duty cycle operation at 5 W output power (Power save function ON)

Other Features:

  • DC power operation with optional AD-149H power supply adapter
  • Total of 208 memory channels with 6 character channel names
  • Direct-conversion system eliminates IF stages

Technical Specifications:

  • Frequency Coverage (EUR Version): TX: 144–146, 430–440 MHz* (*Guaranteed range) RX: 136–174, 400–479 MHz* (* Working range) FM broadcast: 76–108 MHz
  • Number of channels 208 channels (including 2 call and 6 scan edges)
  • Type of emission F2D, F3E (FM)
  • Frequency stability ±2.5 ppm (–20°C to +60°C on the basis of 25°C)
  • Power supply requirement: 7.2 V DC, External DC power: nominal 10–16 V DC (with AD-149H)
  • Current drain (approximate) Tx High: Less than 2.5 A, Rx Max. Audio: Less than 600 mA
  • Antenna Impedance: 50Ω (SMA)
  • Operating Temperature Range: –20°C to +60°C
  • Dimensions (W × H × D; Projections not included) 52.2 × 111.8 × 30.3 mm (with BP-280)
  • Weight (approximate) 278 g (with BP-280 and antenna)

Transmitter Specifications:

  • Output Power 5W, 2.5W, 0.5W
  • Max. Frequency Deviation ±5.0 kHz/±2.5 kHz (W/N)
  • Spurious Emissions: Less than –60 dBc (High, Mid), Less than –13 dBm (Low)
  • Ext. Microphone connector 3-conductor 2.5 (d) mm (1⁄10ʺ)/2.2 kΩ

Receiver Specifications:

  • Receiver Sensitivity: Less than 0.18 μV (at 12 dB SINAD)
  • Squelch Sensitivity: Less than 0.18 μV (at squelch threshold)
  • Adjacent Channel Selectivity: More than 55 dB (FM, 25 kHz) | More than 50 dB (FM Narrow, 12.5 kHz)
  • Spurious response: More than 60 dB
  • Audio Output Power (at 5% distortion, 8 Ω load): Internal SP: 1500 mW (typical) | External: SP 450 mW (typical) | HM-222HLWP: 1500 mW (typical)
  • Ext. speaker connector 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

All stated specifications are subject to change without notice or obligation.
