About Cushcraft A124WB - 2-Meter, Yagi, 4 ele, 18dBi, 1.5 KW

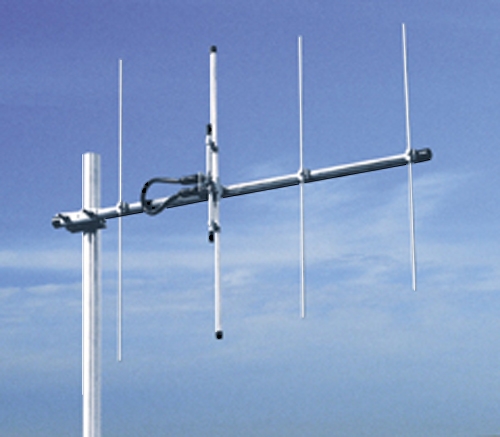

A124WB 4 Element Wideband Boomer

Monoband Yagi, 4 elements on 2 meters, 10.2 dBi gain, Wide-band. The A124WB is a fine antenna for portable use on Field Day or for a VHF contest, and it also works great in base station applications when you need some gain on the 2 meter band.

Don't let the small size fool you; single 124WB beams have made contacts over thousands of miles via tropospheric ducting (California to Hawaii) and via Moonbounce (K7JA to K5GW via CW EME)! The A124WB is an excellent building block for stacked arrays of two, four, or more beams.

Key Specifications:

  • Frequency Range: 144 - 148 MHz
  • Elements per band: 4
  • Gain, dBi: 10.2
  • Front to back Ratio, db: 19
  • Side Lobe Atten, db: 40
  • SWR 1.2:1 Bandwidth MHz: 4
  • Max Power Watts PEP: 1500
  • Weight: 1.36 kg

Use the optional Cushcraft PD-2 Power Divider and equal lengths of 50-Ohm coax to combine pairs of beams, instructions on how to do this are in the A124WB manual.
