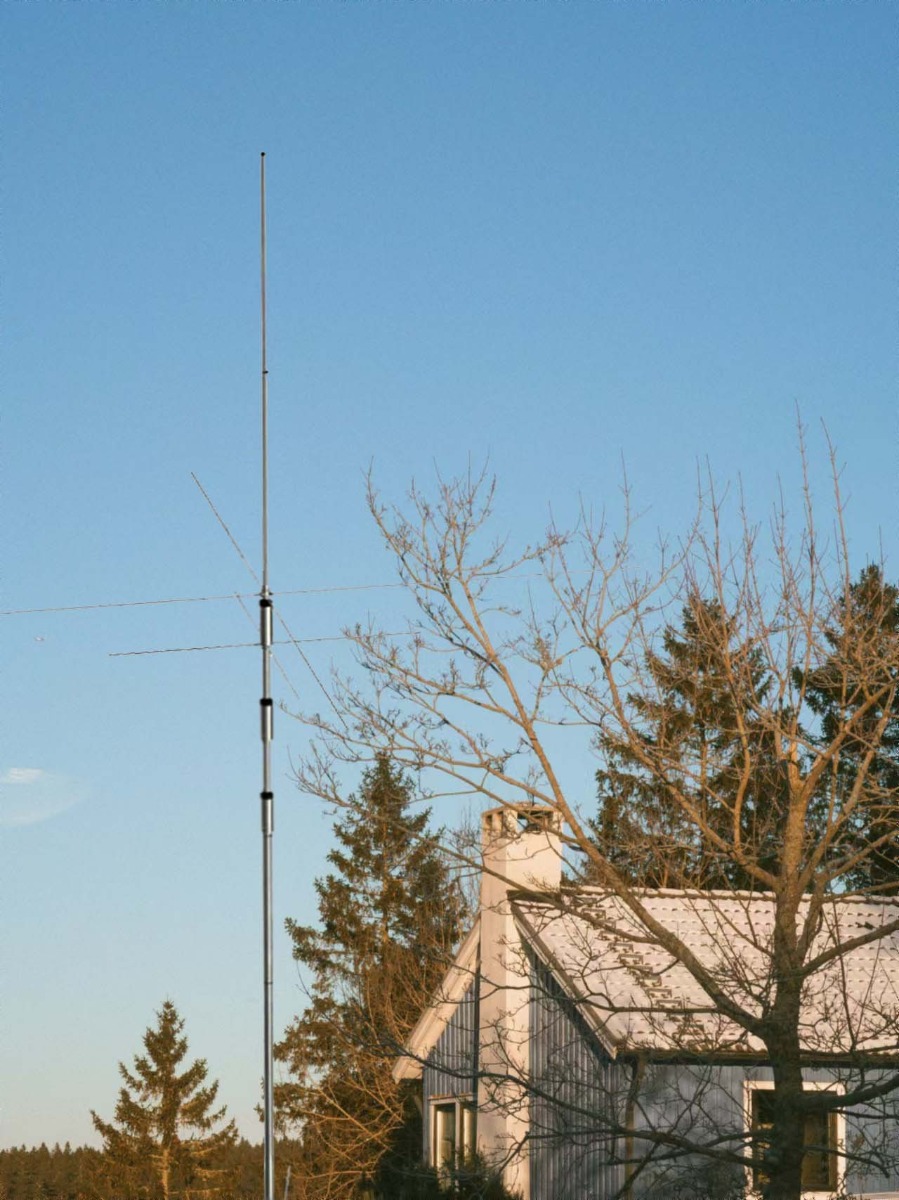

Chelegance KC4 Vertical Antenna

The KC4 is a 4-band, 1000-watt resonant vertical antenna intended for base station use.

It is engineered for smooth multi-band operation, utilizing top loading to maximize efficiency from a short, self-supporting vertical radiator. Once installed, you can easily switch between bands without making any adjustments.

The KC4 operates without the need for ground radials.

Features/ Technical Specifications:

• Antenna Height: 7.8 METER
• Antenna Weight: 6.8KG
• Package Dimensions: 0.46*0.46*3.9FT
• Main Rod Inner Diameter: 1.6 INCHES / 4.1 CM
• Frequency Range:7/14/21/28MHZ(40M/20M/15M/10M)
• Power: 1000 WATT PEP (CW500W, RTTY300W)
• Antenna Impedance: 50 Ω
• VSWR: ＜1.5:1
• Bandwidth: 40m- 150kHz, 20m- 450kHz, 15m- 800kHz, 10m- 1000kHz
• Rated Wind Speed: 35 m/s
• Antenna Feedline Connection Type: UHF FEMALE, SO-239
• HF Vertical Antenna Mounting Position: ELEVATED
• Mounting Clamps Included: YES

NOTE: The recommended installation height is 1.5 meters — this is the height we tested near the label position.
