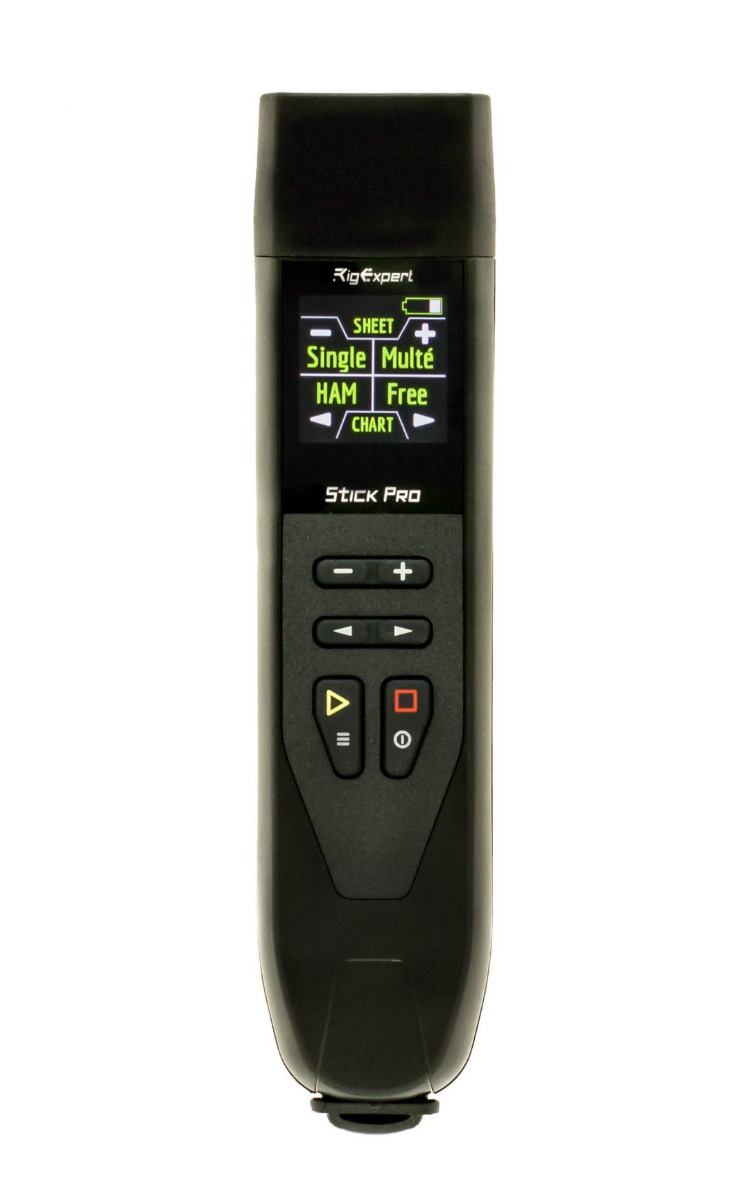

SOLD! B Grade RigExpert Stick Pro - Antenna Analyser (see image for mark left of button)

B Grade RigExpert Stick Pro - see image scratch/small crack left of minus button

<p><b>Specification</p></b> <ul> <li> Frequency: 0.1 to 600MHz </li> <li> Frequency input step: 1KHz </li> <li>Measurement for: 25, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems</li> <li>SWR measurement range: 1-100 in numerical mode / 1-10 in graph mode</li> <li>R&X range: 0… 2000, -2000… 2000</li> <li>Dimensions: 185mm x 40mm x 33mm</li> <li>Weight:185g with battery </li> <li>Operating temperature: 0-40 C (32-104 F)</li> </ul> <p><b> Operating modes</p></b> <ul> <li>SWR return loss: R, X, Z, L, C magnitude and phase angle at one frequency</li> <li>SWR chart: 100 points</li> <li>Multé mode – for quick testing of a multi-band antenna</li> </ul> <p><b>HF Output</p></b> <ul> <li>Connector type: N</li> <li>Output signal shape: square 0.1 to 600 MHz..</li> <li> Output power: -10dBm (at 50 Ohm load)</li> </ul> <b><p>Power </p></b> <ul> <li>One lithium-ion battery 3.7 V type 18650</li> <li>When the analyser is connected to a PC or a DC adapter with USB socket, it takes power from these sources</li> </ul> <p><b>Interface</p></b> <ul> <li>200×200 colour TFT display</li> <li>2 × 3 keys on the waterproof keyboard</li> <li>English menu and help screens</li> <li>USB connection to a personal computer</li> <li>Bluetooth: v.4.2 BLE Single Mode, Class B</li> </ul>
