SOLD! B Grade MFJ VB-214FM - 14 Element 2 Metre FM Beam Antenna
SKU :
80-521
SOLD! B Grade MFJ VB-214FM - 14 Element 2 Metre FM Beam Antenna
In stock
Out of stock
SKU
80-521
£251.95
Prices include local VAT for Eurozone customers.
We ship DPD to the Eurozone - no extra fees on delivery.
For accurate pricing, select your country:
About SOLD! B Grade MFJ VB-214FM - 14 Element 2 Metre FM Beam Antenna

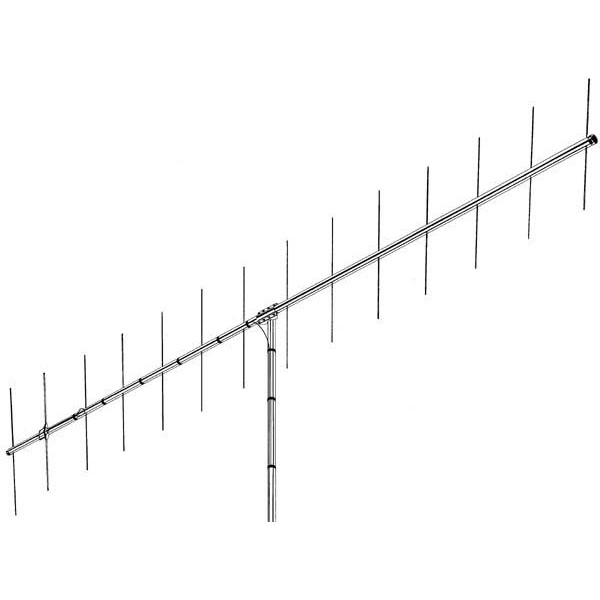

MFJ VB-214FM - 14 Element 2 Metre FM Beam Antenna with BetaMatch.
These 2 Meter FM beam antennas include Hy-Gains exclusive BetaMatch to provide exceptional Front-to-Back ratio and maximum obtainable gains. The VB-214FM gives you a wide choice of 2 Meter Beam performance from which to choose. Accepts up to 2 inch mast.
Technical Specifications:
- Boom Length: 15'6"(4.72 m)
- Longest Element: 39 1/2" (1003 mm)
- Turning Radius (maximum): 95" (2.41 m)
- Wind Survival: 80 mph (129 kmph)
- Mast Diameter: 15/8" to 2 1/16" O.D. (41 mm to 52 mm)
- Boom Diameter: 1 1/4" O.D. (32 mm)
- Wind Area: 1.65 sq. ft. (vertical), 1.28 sq. ft. (horizontal)
- Net Weight: 5.5 pounds (2.5 kg)
- Gain: 15.2 dBi (13.0 dBd)
- Front-to-Back Ratio: 20 dB
- Maximum SWR: 2:1
- Band Width: 4 MHz
- Maximum Power: 250 watts continuous, 500 watts P.E.P.
- Impedance: 50 ohms (with balun)
- Half-Power Beam Width: 35° (vertical, horizontal polarization)
- Broadside Stacking Distance: 12" max., 6'10" min.
