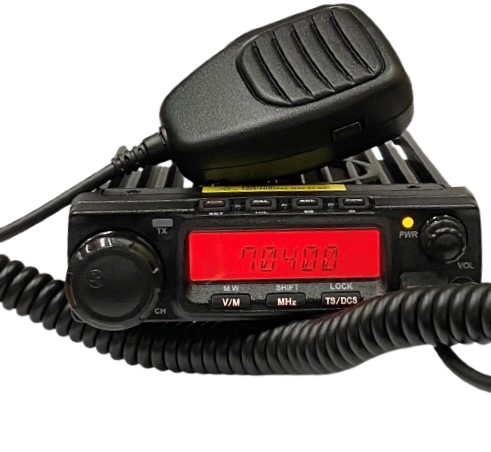

Anytone AT-588 4M 66-88MHz Mobile Transceiver

In stock
Out of stock
SKU
10-914
Special Price £145.00 Regular Price £149.95
About Anytone AT-588 4M 66-88MHz Mobile Transceiver

Please Note does not include DTMF Mic

70MHz version of this fully featured, classic little FM transceiver with plenty of power Max (50w) available on the popular and friendly 4m (70MHz) band.

Features:

  • Output Power:35/25W/10W.
  • CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.
  • Four different tone-pulse frequencies.
  • Compander to reduce noise, Theft alarm.
  • ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID.
  • QHM-03 multifunctional microphone with DTMF.
  • Technical Specifications:

    • Frequency Range: VHF: 66-88MHz
    • Number of Channels: 200
    • Channel Spacing: 25K (Wide Band) | 20K (Middle Band) | 12.5K (Narrow Band)
    • Phase-locked Step: 5KHz, 6.25KHz,8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
    • Operating Voltage: 13.8V DC ±15%
    • Squelch: Carrier/CTCSS/DCS/5 Tone /2 Tone/DTMF
    • Frequency Stability: ±2.5ppm
    • Operating Temperature: -20℃~+60℃
    • Dimensions (W x H x D): 145mm x 47mm x 190mm
    • Weight: 1.2Kg approx.

    Transmitter Specifications:

    • Sensitivity (12dB SINDA): Wideband: ≤0.25μV | Narrowband: ≤0.35μV
    • Adjacent Channel Selectivity: Wide band: ≥70dB | Narrowband: ≥60dB
    • Intermodulation: Wide band: •≥65dB | Narrowband: ≥60dB
    • Spurious Rejection: Wide band: ≥70dB | Narrowband: ≥70dB
    • Audio Response: Wide band: +1~-3dB(0.3~3KHz) | Narrowband: +1~-3dB(0.3~2.55KHz)
    • Hum & Noise: Wide band: ≥45dB | Narrowband: ≥40dB
    • Audio Distortion: Wide band: ≤5% | Narrowband: N/A
    • Audio Power Output: Wide band: >2W@10% | Narrowband: N/A
