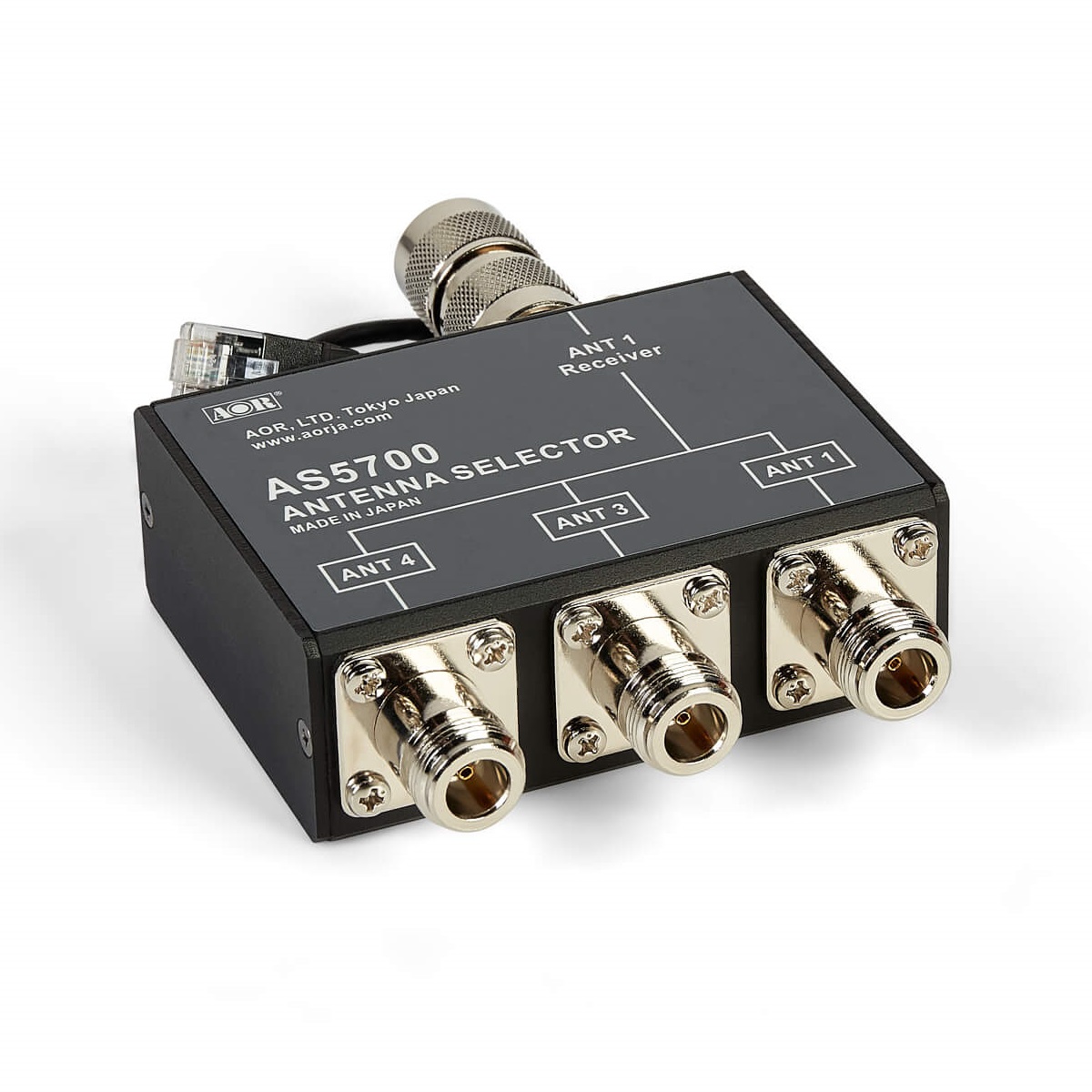

AOR AS5700 - Antenna Switch for AR5700D

Antenna terminal switch AS5700 (for AR5700D).

By connecting to a compatible wideband receiver, you can add two antenna terminals.

The antenna terminal to be used can be selected from wideband receivers.

Also, by assigning the antenna terminal to be used to the frequency band, the antenna is automatically switched.

In the band up to 3700MHz, low loss and high isolation characteristics can be achieved, and the performance of antennas can be fully utilized even when multiple antennas are connected.

Technical Specifications:

• Corresponding Frequency: : DC ~ 3700MHz (Receiver operating range: 25MHz ~ 3700MHz)
• Insertion loss: <100MHz = approx. 0.5dB 2000MHz = approx. 1.4dB, 3700MHz = approx. 1.6dB
• Isolation: <100MHz = 70dB or more 2000MHz = 62dB or more, 3700MHz = 30dB or more
• Impedance: 50Ω (unbalanced) N-type connector
• Dimensions: 71 x 93 x 33 mm (excluding protrusions)
• Weight: approx. 320g
• Accessories: Instruction manual, NP-NP connector 1 each
• Compatible Receiver: AR5700D
