B Grade Anytone Apollo II - Mobile CB Transceiver (New Like Condition)

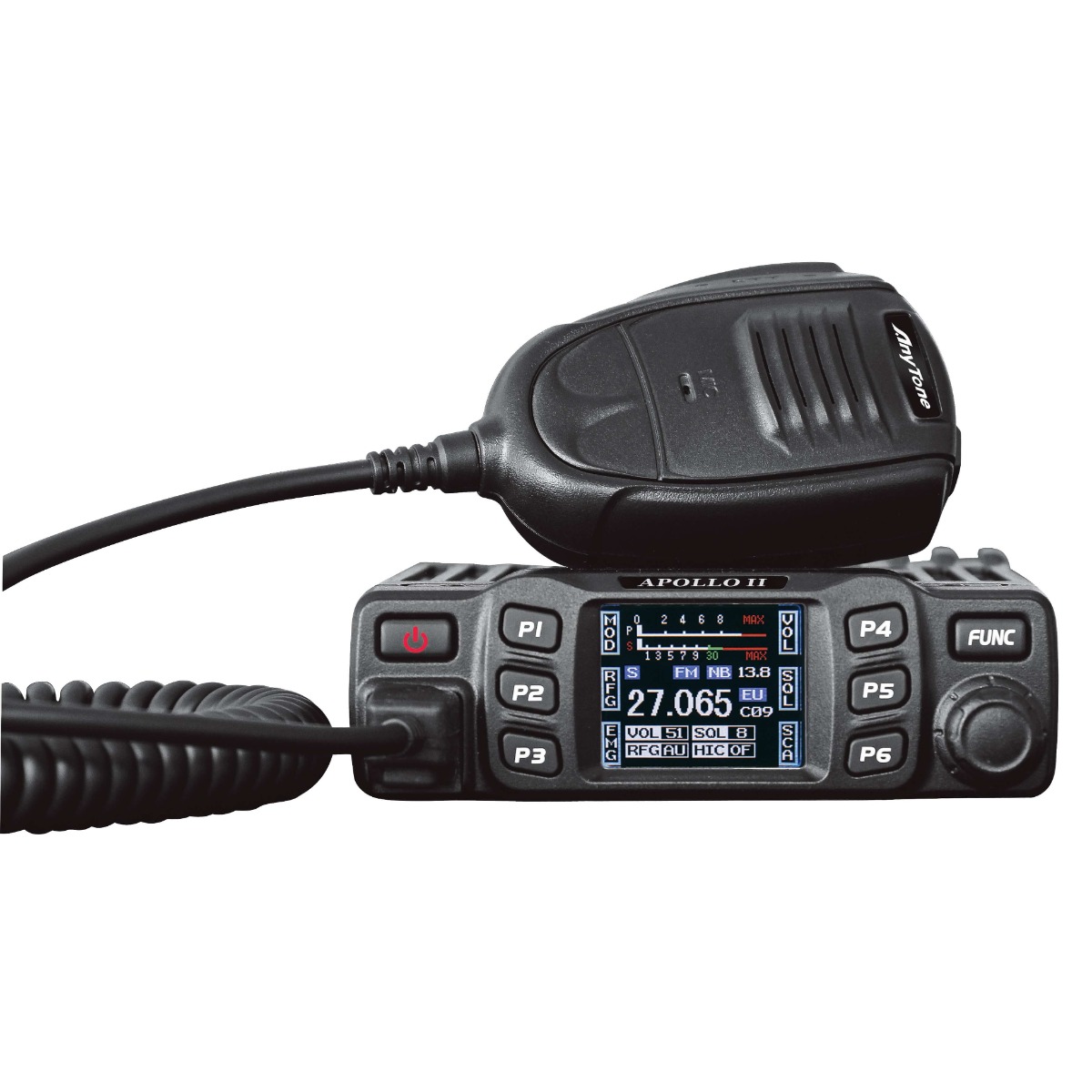

Anytone Apollo II - Mobile CB Transceiver

Features:

• FTF LCD display
• 12/24V voltage (4W version only)
• Full alloy body for heat radiation
• Programmable keypad
• CTCSS/DCS (optional)
• Wireless microphone control(optional)
• Cell-phone APP control (optional)
• AM/FM multi norms
• Flexible menu and programming software
• DTMF
• SQ, ASQ
• SQ, ASQ open/close value setting
• RF Gain
• Scan
• Dual watch
• Programmable RB
• CH9/19
• NB
• HI-CUT
• Voltage protection
• 8 memory channel
• TOT
• Backlight control
• Automatic power on
• Keypad lock

Included in Box:

• Radio
• Microphone
• Screws
• Pads
• Adjusting screws
• Microphone Hanger
• Install bracket
• Non-slip mat
• Fuse(5A 250V)

General Specifications:

• Modulation Mode: AM/FM
• Frequency Range: 26.565 ~ 27.99125MHz (FM), 26.965 ~ 27.405MHz (AM)
• Frequency Tolerance: ±5.0ppm
• Input Voltage: 12/24V
• Dimensions(mm): 124(W) x 163(D) x 39(H)
• Weight(approx.): 670g
• Frequency Control: PLL Synthesizer
• Operating Temperature Range: -20°C TO + 55° C
• Current Drain: Transmit: 2A MAX, Receive: Squelched 0.3A, VOL Max: 0.8A
• Antenna Connector: UHF, SO-239

Transmitter Specifications:

• Power Output: 4 Watts FM/AM
• Transmission Interference: inferior to 4nW(-54dBm)
• Frequency Response: 300-3000Hz
• Modulated Signal Distortion: inferior to 5%
• Output Impedance: 50 Ohms

Receiver Specifications:

• Sensitivity: Less than 1uV for 10dB(S+N)/N
• Image Rejection: 70dB
• Adjacent Channel Rejection: 60dB
• IF Frequencies: 1st 10.695MHz, 2nd 455KHz
• Automatic Gain Control (AGC): Less than 10dB change in audio, Output for inputs from 10 to 50000uV
• Squelch: less than 1uV
• Audio Output Power: 3 watts into 8 ohms
• Frequency Response: 300-3000Hz
